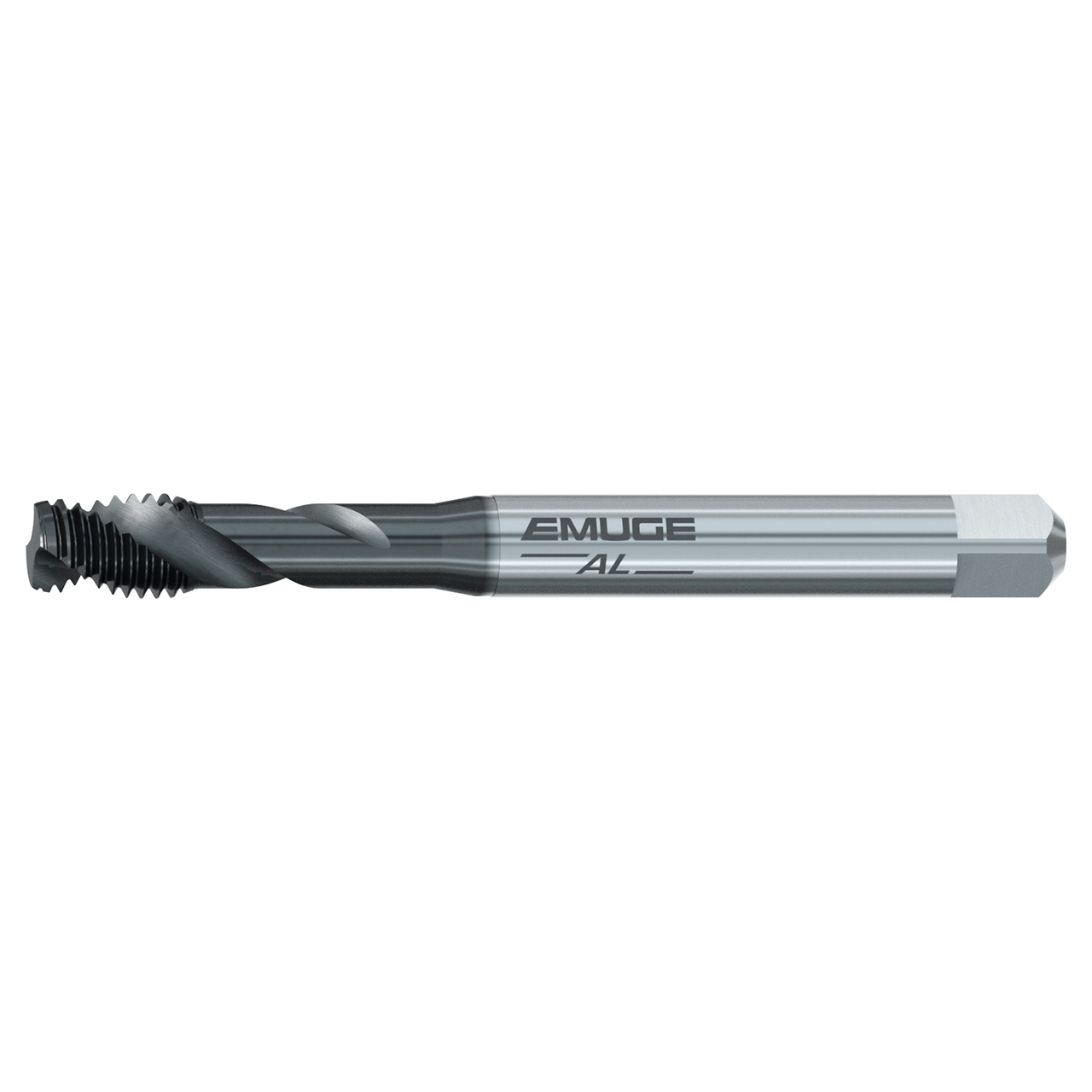

Emuge B051S800.0030 | M 3x0.5 Thread Size x 3.50mm Shank x 56.00mm OAL 35 Degree Helix Angle GLT-8 Coated Spiral Flute Tap

$60.10
Brand:
Emuge
Thread Size:
M 3x0.5
Number of Flutes:
2
Finish/Coating:
GLT-8
Flute Direction:
Right Hand
Overall Length (Inch):
2-13/64"
Overall Length (Decimal Inch):
2.2047"
Overall Length (mm):
56.00mm
interval quantity:
1
SKU:
15040676
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Emuge B051S800.0030 | M 3x0.5 Thread Size x 3.50mm Shank x 56.00mm OAL 35 Degree Helix Angle GLT-8 Coated Spiral Flute Tap

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials
  • The fast spiral flute provides good chip removal from blind holes
  • GLT-8 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB051S800.0030
Thread SizeM 3x0.5
Thread Diameter SizeM 3
Thread StandardM
Thread Pitch (mm)0.50mm
Tap Square (mm)2.70mm
Thread Length (mm)5.00mm
Overall Length (mm)56.00mm
Thread Tolerance ClassISO 2/6H
Tap Chamfer1.5-2 P
Tap Chamfer FormE
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute2
Flute Helix Angle (Degree)35 Degree
Cutting Edge MaterialHSSE
CoatingGLT-8
Tool TypeEMUGE AL
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
