Features:

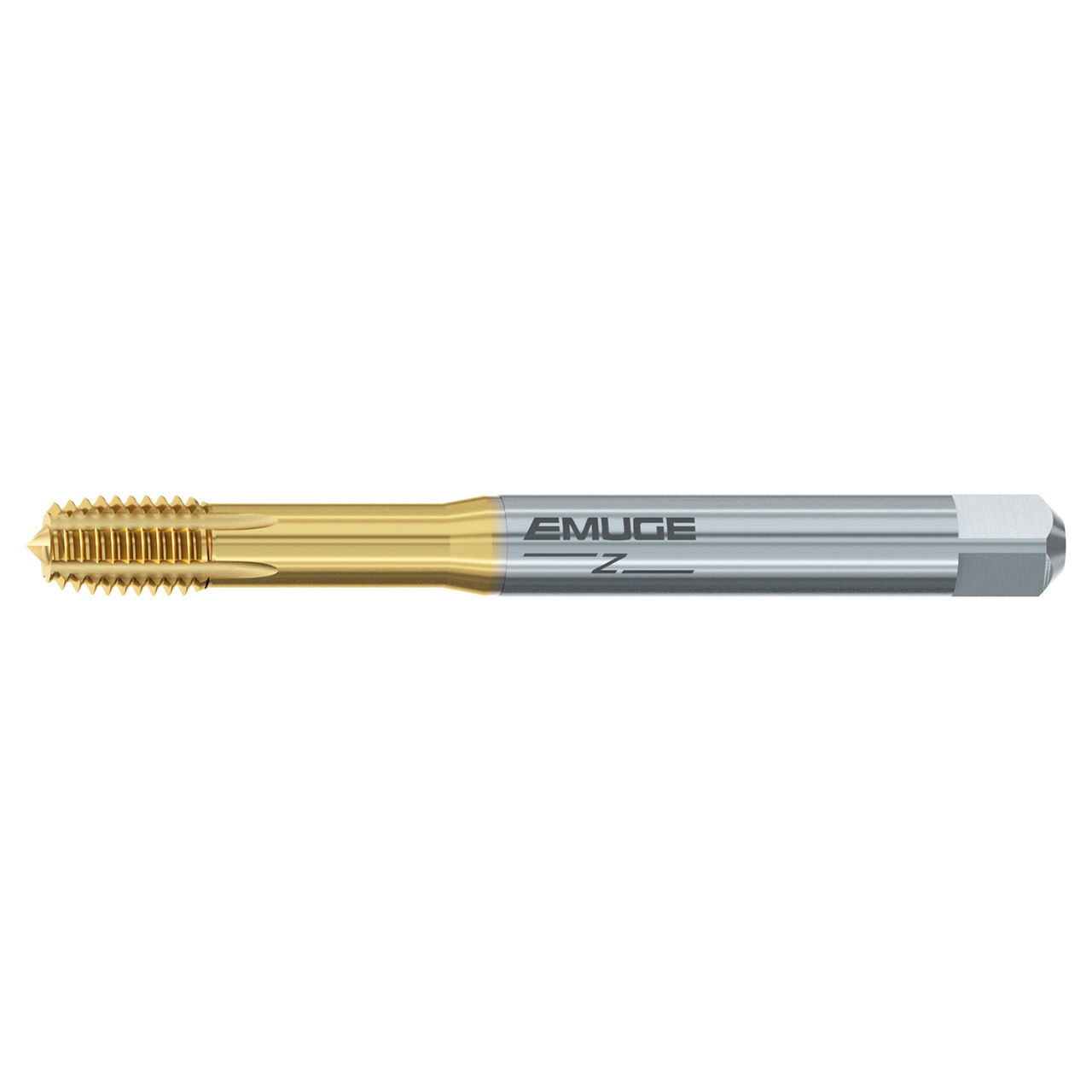

- The InnoForm Z roll form powdered metal tap is designed for many applications
- Short threaded part and special polygon shape for less torque
- TIN-80 coated for heat and wear resistance
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | B521Z700.5039 |
| Cutting Diameter (Decimal Inch) | 40.000" |
| Thread Size | #6-40 |
| Thread Diameter Size | #6 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 40 TPI |
| Overall Length (mm) | 56.00mm |
| Flute Length (mm) | 12.00mm |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Tool Type | EMUGE Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
40.0000"
Shank Diameter (mm):
4.00mm
Cutting Edge Material:
HSSE-PM
Flute Length (mm):
12.00mm
Thread Size:
#6-40
Thread Standard:
UNF
Threads per Inch (TPI):
40 TPI
Flute Direction:
Straight
Finish/Coating:
TiN-80
Tool Type:
EMUGE Z
Application:
Form Taps
Overall Length (mm):
56.00mm
