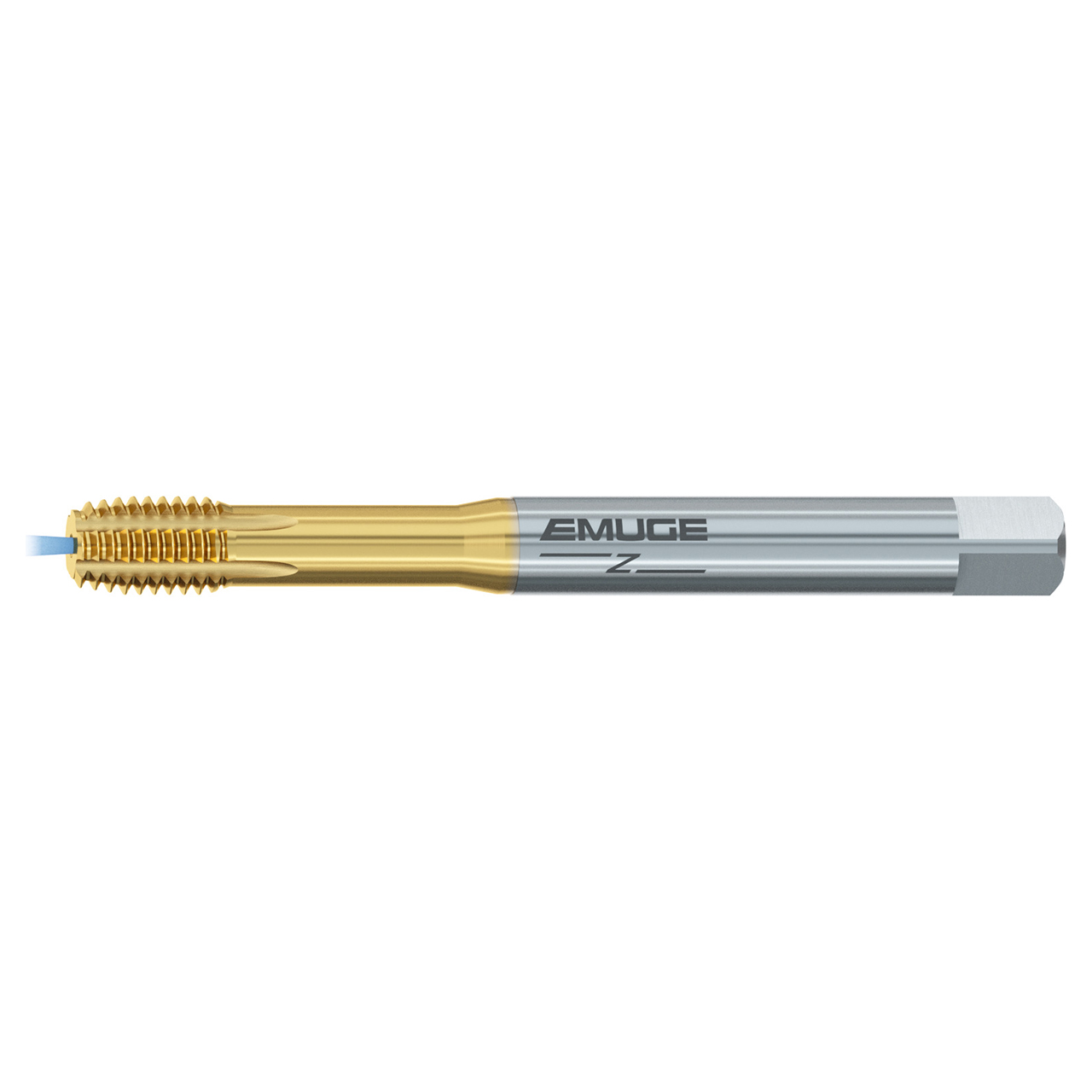

Features:
- The InnoForm Z roll form tap is designed for low tensile strength materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TIN-80 coated for heat and wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | B523Z700.5041 |
| Cutting Diameter (Decimal Inch) | 32.000" |
| Thread Size | #10-32 |
| Thread Diameter Size | #10 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 32 TPI |
| Overall Length (mm) | 70.00mm |
| Flute Length (mm) | 15.00mm |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Tool Type | EMUGE Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
32.0000"
Shank Diameter (mm):
6.00mm
Cutting Edge Material:
HSSE-PM
Flute Length (mm):
15.00mm
Thread Size:
#10-32
Thread Standard:
UNF
Threads per Inch (TPI):
32 TPI
Flute Direction:
Straight
Finish/Coating:
TiN-80
Tool Type:
EMUGE Z
Application:
Form Taps
Overall Length (mm):
70.00mm
