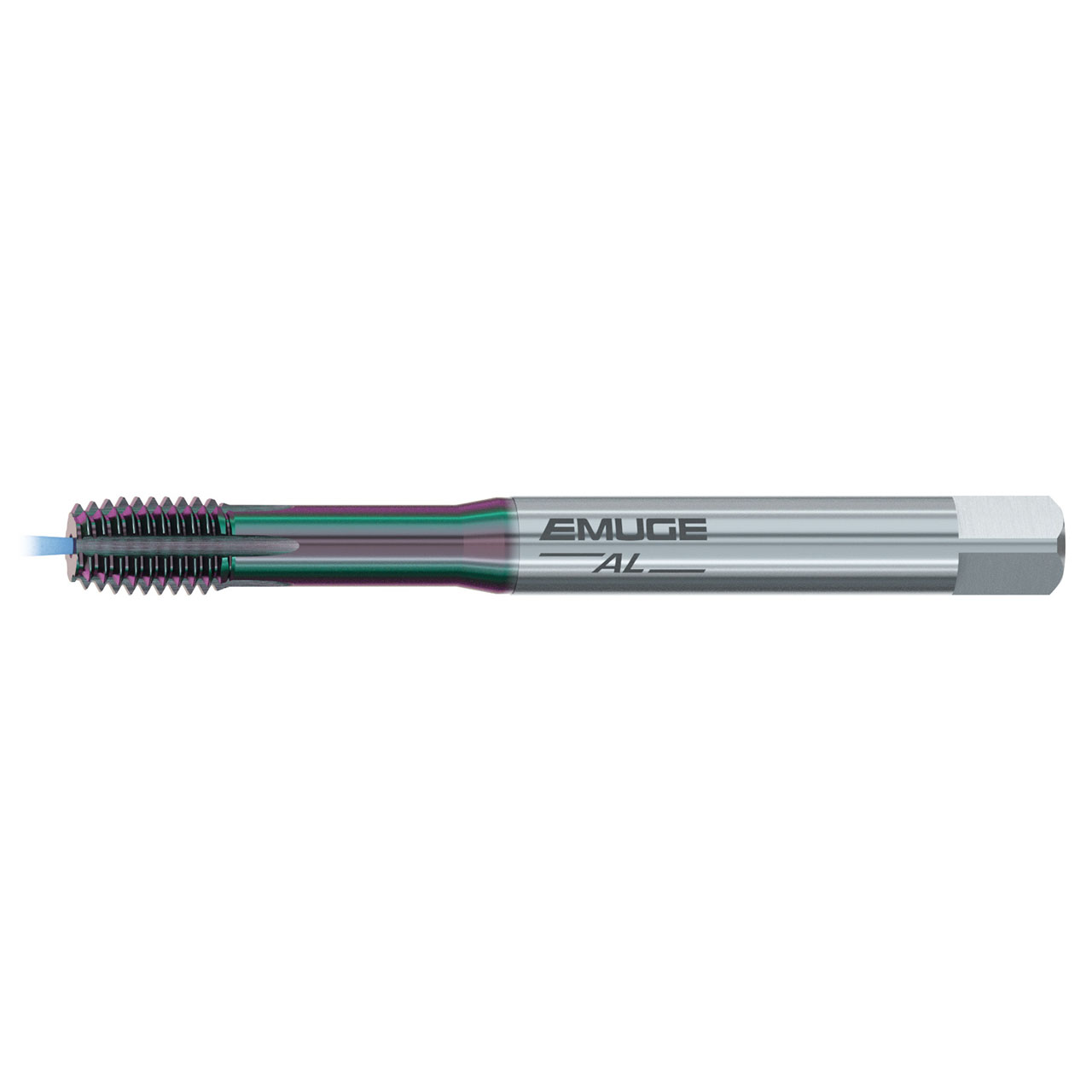

Emuge B5311Q00.0080 | M 8 Thread Size x 14.00mm Thread Length x 6.20mm Tap Square GLT-104 Coated Thread Forming Tap

$181.80
Brand:
Emuge
Thread Size:
M 8x1.25
Thread Diameter Size:
M 8
Overall Length (Inch):
3-44/81"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Thread Length (Inch):
43/78"
Thread Length (Decimal Inch):
0.5512"
Thread Length (mm):
14.00mm
Coating:
GLT-104
interval quantity:
1
SKU:
18020064
Weight:
0.11 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge B5311Q00.0080 | M 8 Thread Size x 14.00mm Thread Length x 6.20mm Tap Square GLT-104 Coated Thread Forming Tap

Features:

  • The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberB5311Q00.0080
Thread SizeM 8x1.25
Thread Diameter SizeM 8
Tap Square (mm)6.20mm
Thread Length (mm)14.00mm
Overall Length (mm)90.00mm
Length GroupDIN Length
Dimensional StandardDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Thread StandardM
Thread Tolerance Class6HX
Tap Chamfer1.5 -2 P
Tap Chamfer FormE
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingGLT-104
Product TypeThread Forming Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Emuge
Thread Size:
M 8x1.25
Thread Diameter Size:
M 8
Overall Length (Inch):
3-44/81"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Thread Length (Inch):
43/78"
Thread Length (Decimal Inch):
0.5512"
Thread Length (mm):
14.00mm
Coating:
GLT-104
interval quantity:
1
