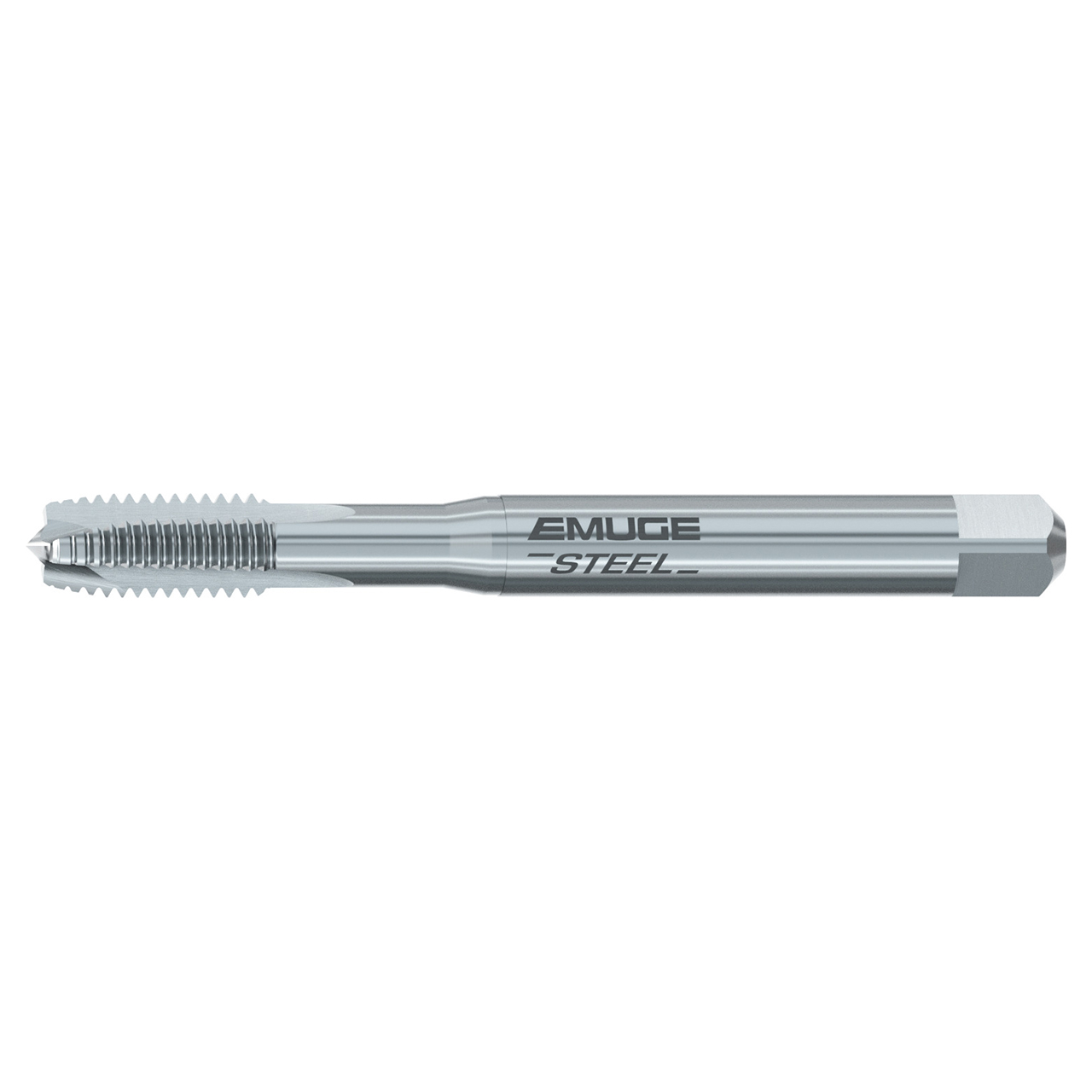

Emuge BU208960.5043 | 1/4"-28 Thread Size x 3.150" OAL 3 Flute Bright Coated Spiral Flute Tap

Emuge BU208960.5043 | 1/4"-28 Thread Size x 3.150" OAL 3 Flute Bright Coated Spiral Flute Tap

SKU: 15038288 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$65.55 $64.24
(You save $1.31)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord B-Steel-L design is typically for through hole applications in long-chipping materials
  • The spiral point ensures optimum chip removal in the feed direction
  • Bright, uncoated surface finish
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU208960.5043
Thread Size1/4"-28"
Thread Diameter Size (Inch)1/4"
Thread StandardUNF
Thread per Inch (TPI)28 TPI
Tap Square (Decimal Inch)0.191"
Thread Length (Decimal Inch)0.669"
Overall Length (Decimal Inch)3.150"
Shank Machine Side Connection Diameter (Decimal Inch)0.255"
Thread Tolerance Class3B
Tap Chamfer4-5 P
Tap Chamfer FormB
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Cutting Edge MaterialHSSE
CoatingBright
Tool TypeRekord B-Steel-L
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
