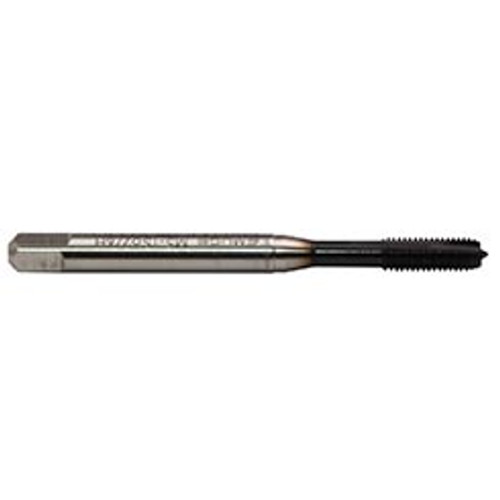

Emuge BU20S810.5613 | STI #6-32 UNC -Tap -Rekord B -Al

$61.31
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
6-32
Thread Limit:
3B
Number of Flutes:
2
Chamfer:
4 -5 P
Material:
HSSE
Finish/Coating:
GLT-8
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7560"
Overall Length (mm):
70mm
Thread Standard:
STI-UNC
Thread Length (Inch):
15/32"
Thread Length (Decimal Inch):
0.4720"
Thread Length (mm):
11.99mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1940"
Shank Diameter (mm):
4.93mm
SKU:
15038436
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
BU20S810.5613-B

Features:

  • Rekord B-AL tap is designed for wrought aluminum materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
6-32
Thread Limit:
3B
Number of Flutes:
2
Chamfer:
4 -5 P
Material:
HSSE
Finish/Coating:
GLT-8
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7560"
Overall Length (mm):
70mm
Thread Standard:
STI-UNC
Thread Length (Inch):
15/32"
Thread Length (Decimal Inch):
0.4720"
Thread Length (mm):
11.99mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1940"
Shank Diameter (mm):
4.93mm
