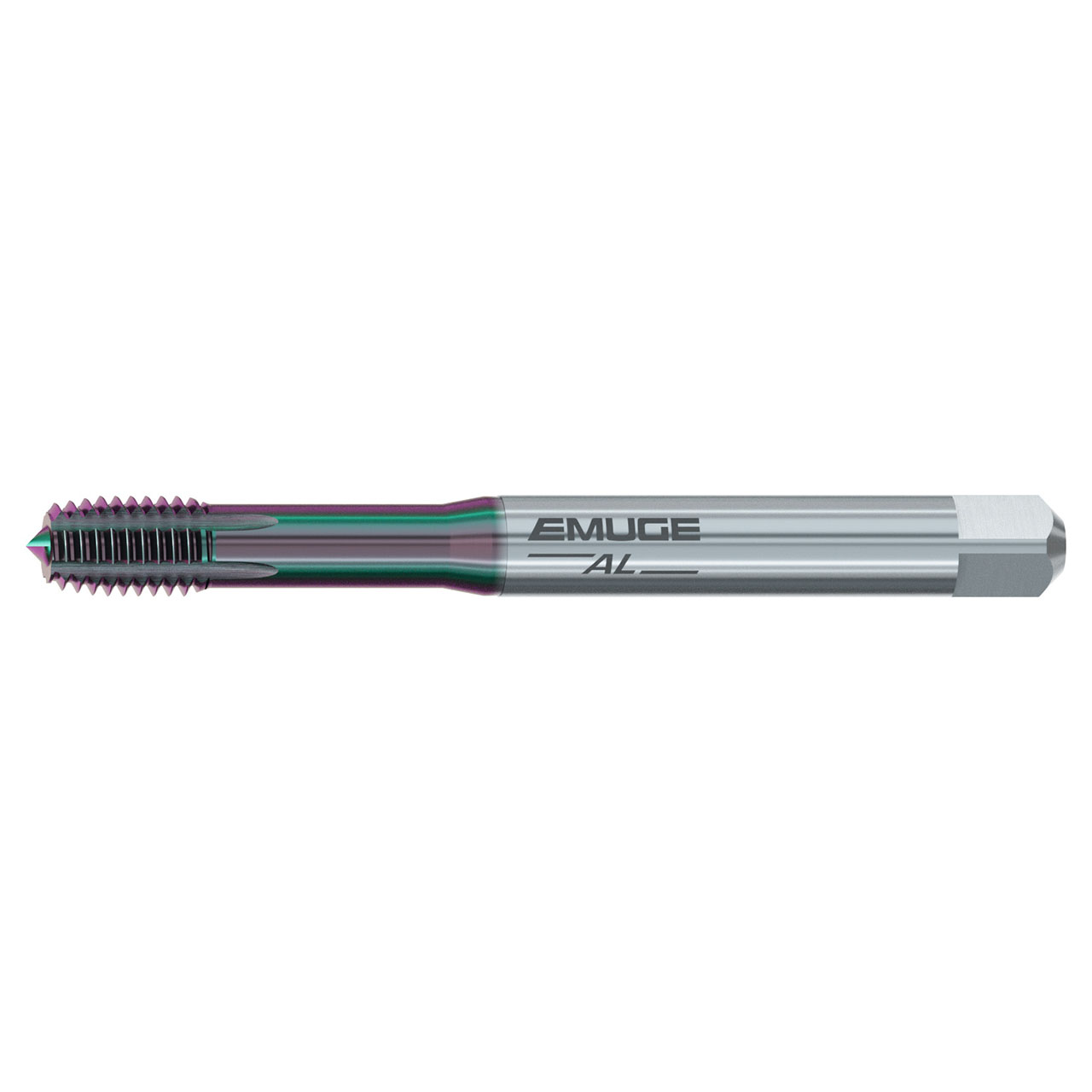

Emuge BU371Q00.5039 | 0.250" Thread Length x 0.110" Tap Square GLT-104 Coated Thread Forming Tap

$71.07
Brand:
Emuge
Thread Size:
#6-40
Thread Diameter Size:
#6
Thread Per Inch (TPI):
40 TPI
Overall Length (Inch):
2-8/39"
Overall Length (Decimal Inch):
2.2050"
Overall Length (mm):
56.01mm
Thread Length (Inch):
1/4"
Thread Length (Decimal Inch):
0.2500"
Thread Length (mm):
6.35mm
Coating:
GLT-104
interval quantity:
1
SKU:
18019719
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU371Q00.5039 | 0.250" Thread Length x 0.110" Tap Square GLT-104 Coated Thread Forming Tap

Features:

  • The InnoForm AL roll form tap is designed for aluminum alloys.
  • Short threaded part and special polygon shape for less torque
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU371Q00.5039
Thread Size#6-40
Thread Diameter Size#6
Thread Per Inch (TPI)40 TPI
Tap Square (Decimal Inch)0.110"
Thread Length (Decimal Inch)0.250"
Overall Length (Decimal Inch)2.205"
Length GroupDIN Length
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNF
Thread Tolerance Class2BX
Tap Chamfer2 -3 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE-PM
CoatingGLT-104
Product TypeStraight Flute Tap
