Features:

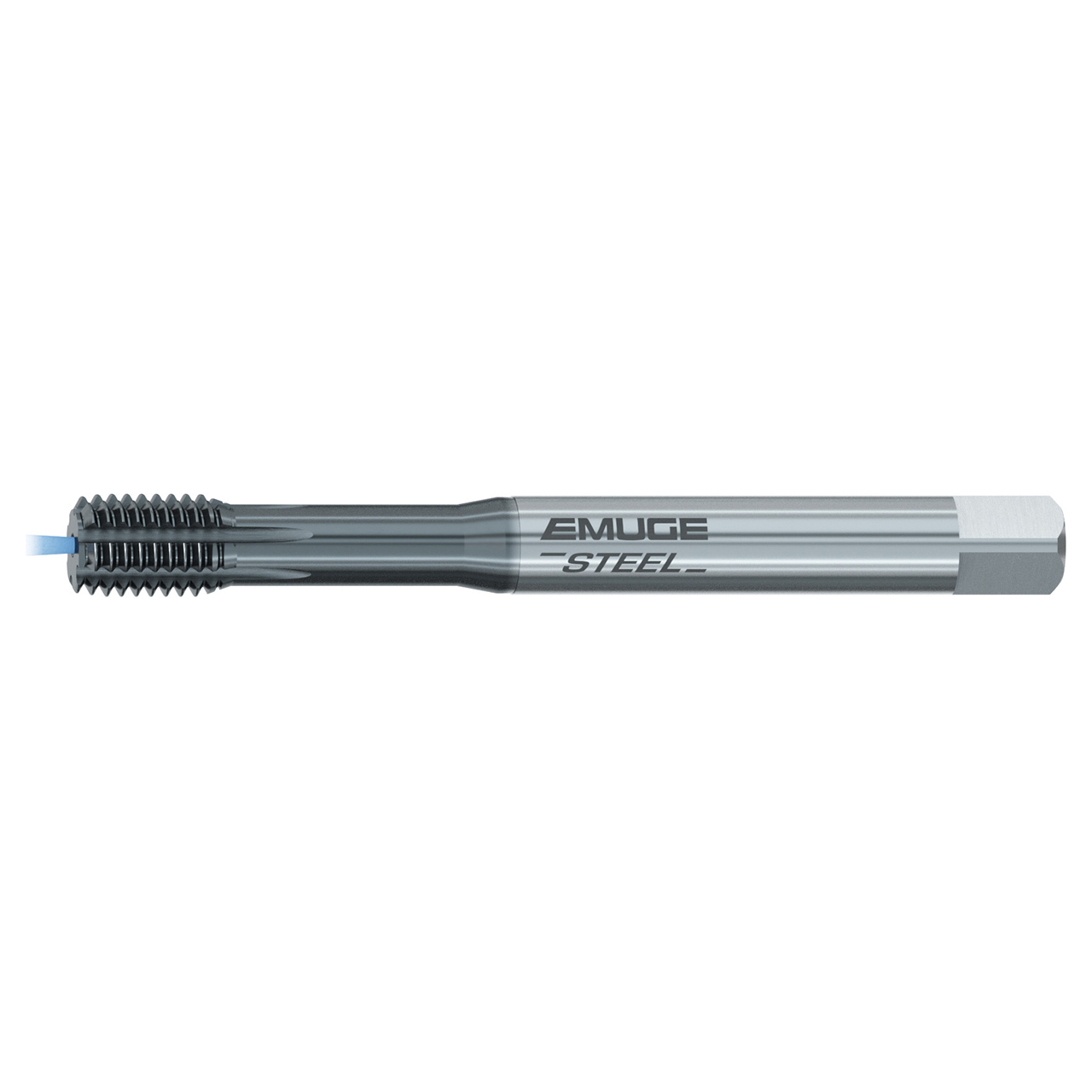

- The InnoForm Steel-H roll form tap is designed for high tensile strength materials
- Axial coolant fed to maximize chip evacuation and improve thread quality
- TICN-67 coating for less wear and longer tool life
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU386F00.5045 |
| Thread Size | 3/8"-24" |
| Thread Diameter Size (Inch) | 3/8" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.286" |
| Thread Length (Decimal Inch) | 0.417" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.381" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TICN-67 |
| Tool Type | EMUGE STEEL |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
3/8-24"
Finish/Coating:
TICN-67
Thread Standard:
UNF
