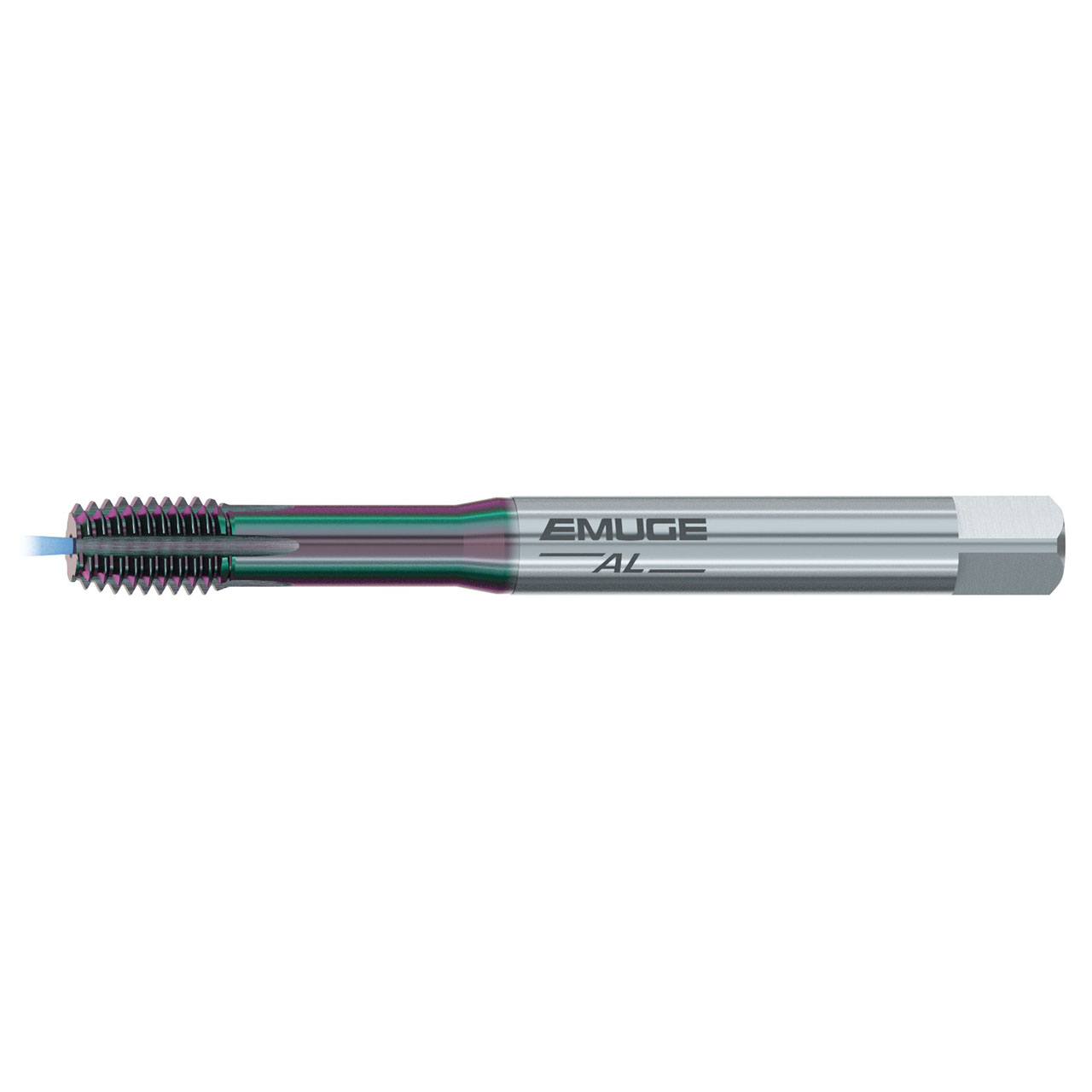

Emuge BU441Q00.5007 | 0.417" Thread Length x 0.152" Tap Square GLT-104 Coated Thread Forming Tap

Emuge BU441Q00.5007 | 0.417" Thread Length x 0.152" Tap Square GLT-104 Coated Thread Forming Tap

SKU: 18019726 Weight: 0.18 LBS Minimum Purchase: 1 unit
UPC:
$99.14 $97.16
(You save $1.98)
Shipping: Calculated at Checkout

About This Item

Features:

  • The InnoForm AL/E roll form bottoming tap is designed for aluminum alloys.
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU441Q00.5007
Thread Size#10-24
Thread Diameter Size#10
Thread Per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.152"
Thread Length (Decimal Inch)0.417"
Overall Length (Decimal Inch)2.756"
Length GroupDIN Length
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Thread StandardUNC
Thread Tolerance Class2BX
Tap Chamfer1.5 -2 P
Tap Chamfer FormE
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingGLT-104
Product TypeStraight Flute Tap
