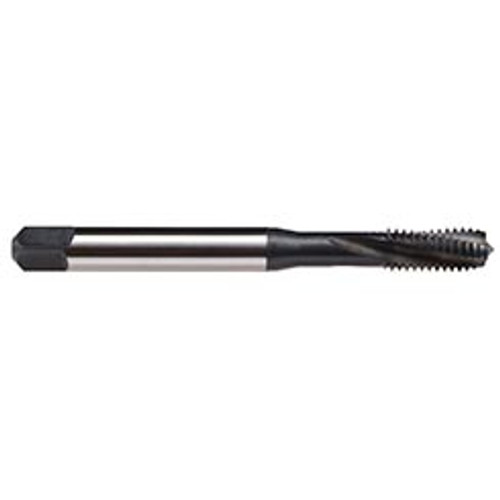

Emuge BU456011.5616 | STI #12-24 UNC - Tap - Rekord D-TI - Titanium

$59.24
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
12-24
Thread Limit:
3BX
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NT2
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Thread Standard:
STI-UNC
Thread Length (Inch):
43/64"
Thread Length (Decimal Inch):
0.6690"
Thread Length (mm):
17mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3180"
Shank Diameter (mm):
8.08mm
SKU:
15038831
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
BU456011.5616-B

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. Best suited for titanium and high tensile strength materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
12-24
Thread Limit:
3BX
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NT2
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Thread Standard:
STI-UNC
Thread Length (Inch):
43/64"
Thread Length (Decimal Inch):
0.6690"
Thread Length (mm):
17mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3180"
Shank Diameter (mm):
8.08mm
