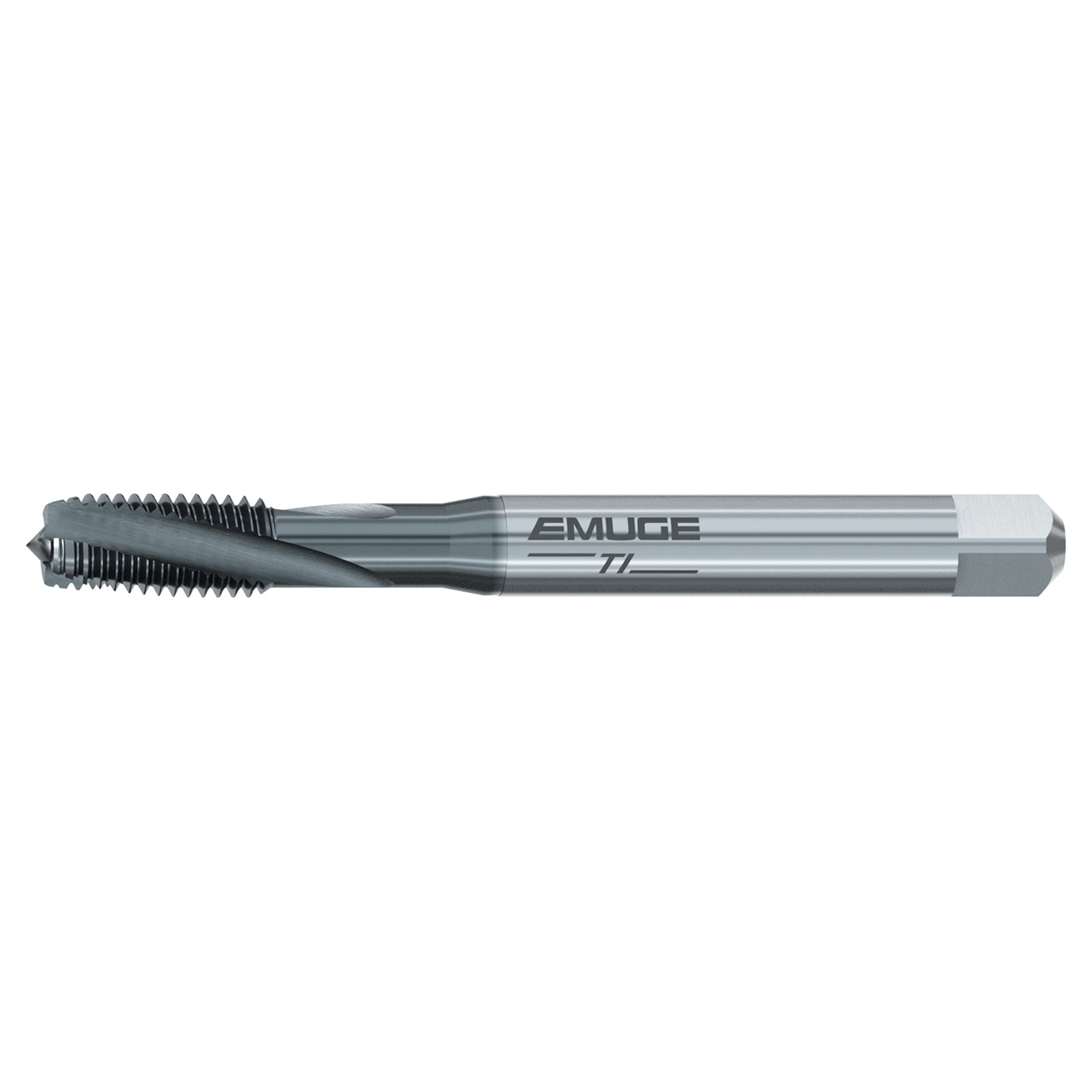

Emuge BU459611.5640 | 5/16"-24 Thread Size x 3.937" OAL 3 Flute TICN Coated Thread Forming STI Tap

Emuge BU459611.5640 | 5/16"-24 Thread Size x 3.937" OAL 3 Flute TICN Coated Thread Forming STI Tap

SKU: 17984798 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$102.97 $100.91
(You save $2.06)
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU459611.5640
Thread Size5/16"-24"
Thread Diameter Size (Inch)5/16"
Thread StandardSTI-UNF
Thread per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.286"
Thread Length (Decimal Inch)0.709"
Overall Length (Decimal Inch)3.937"
Shank Machine Side Connection Diameter (Decimal Inch)0.381"
Thread Tolerance Class3BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSTI Taps
Product TypeThread Forming STI Tap
