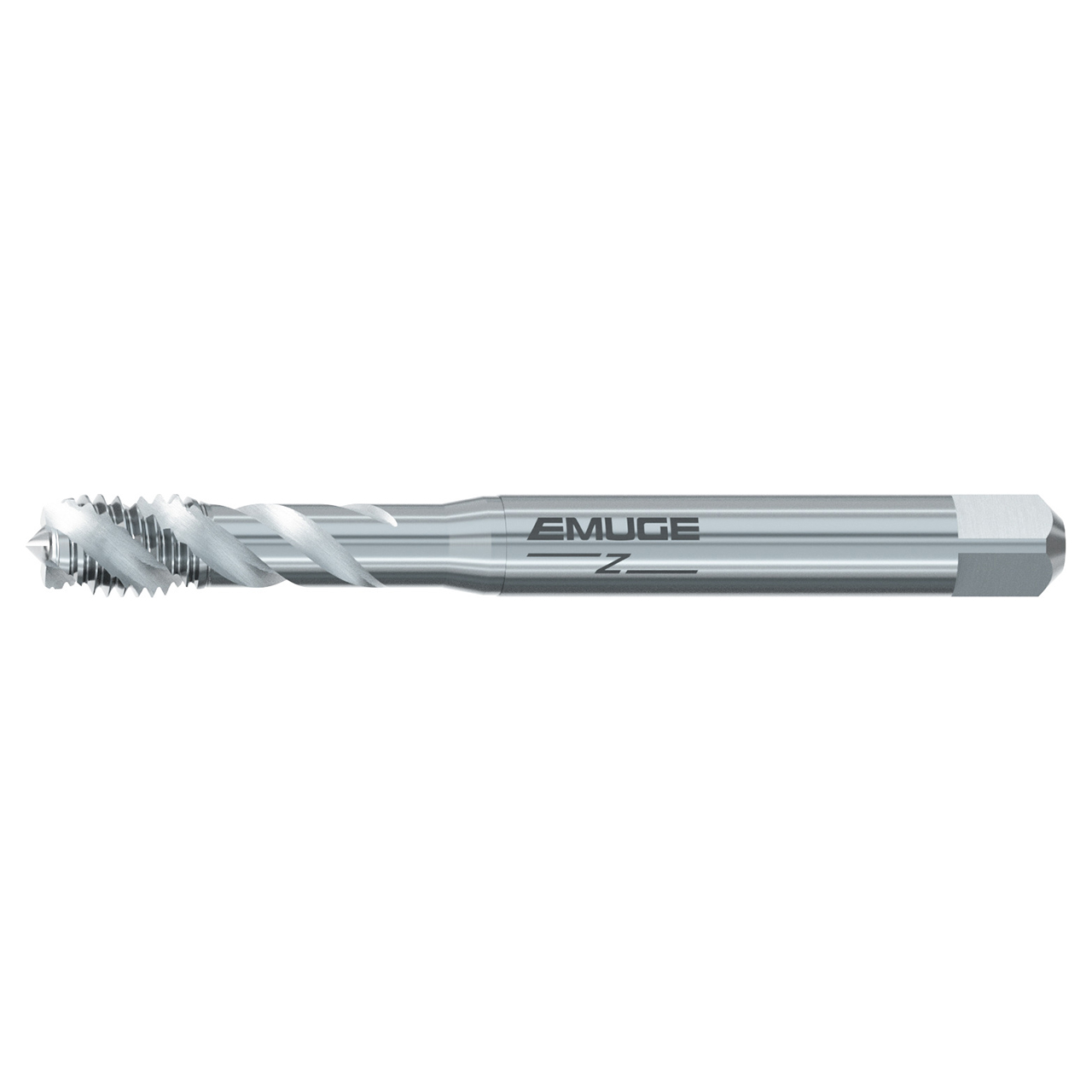

Emuge BU503560.5008 | #12-24 Thread Size x 3.150" OAL 3 Flute Bright Coated Spiral Flute Tap

$69.05 $67.67
(You save $1.38)
Brand:
Emuge
Number of Flutes:
3
Finish/Coating:
Bright
Flute Direction:
Left Hand
Threads per Inch (TPI):
24
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
interval quantity:
1
SKU:
15038865
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge BU503560.5008 | #12-24 Thread Size x 3.150" OAL 3 Flute Bright Coated Spiral Flute Tap

Related Products

Features:

  • The Enorm Z design is typically for blind hole threads in long chipping materials
  • Bright surface finish
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
  • Longer tool life and more consistent thread quality

Product Specifications
Manufacturer Part NumberBU503560.5008
Thread Size#12-24
Thread Diameter Size#12
Thread StandardUNC
Thread per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.165"
Thread Length (Decimal Inch)0.630"
Overall Length (Decimal Inch)3.150"
Shank Machine Side Connection Diameter (Decimal Inch)0.220"
Thread Tolerance Class3B
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)45 Degree
Cutting Edge MaterialHSSE
CoatingBright
Tool TypeEnorm Z
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
