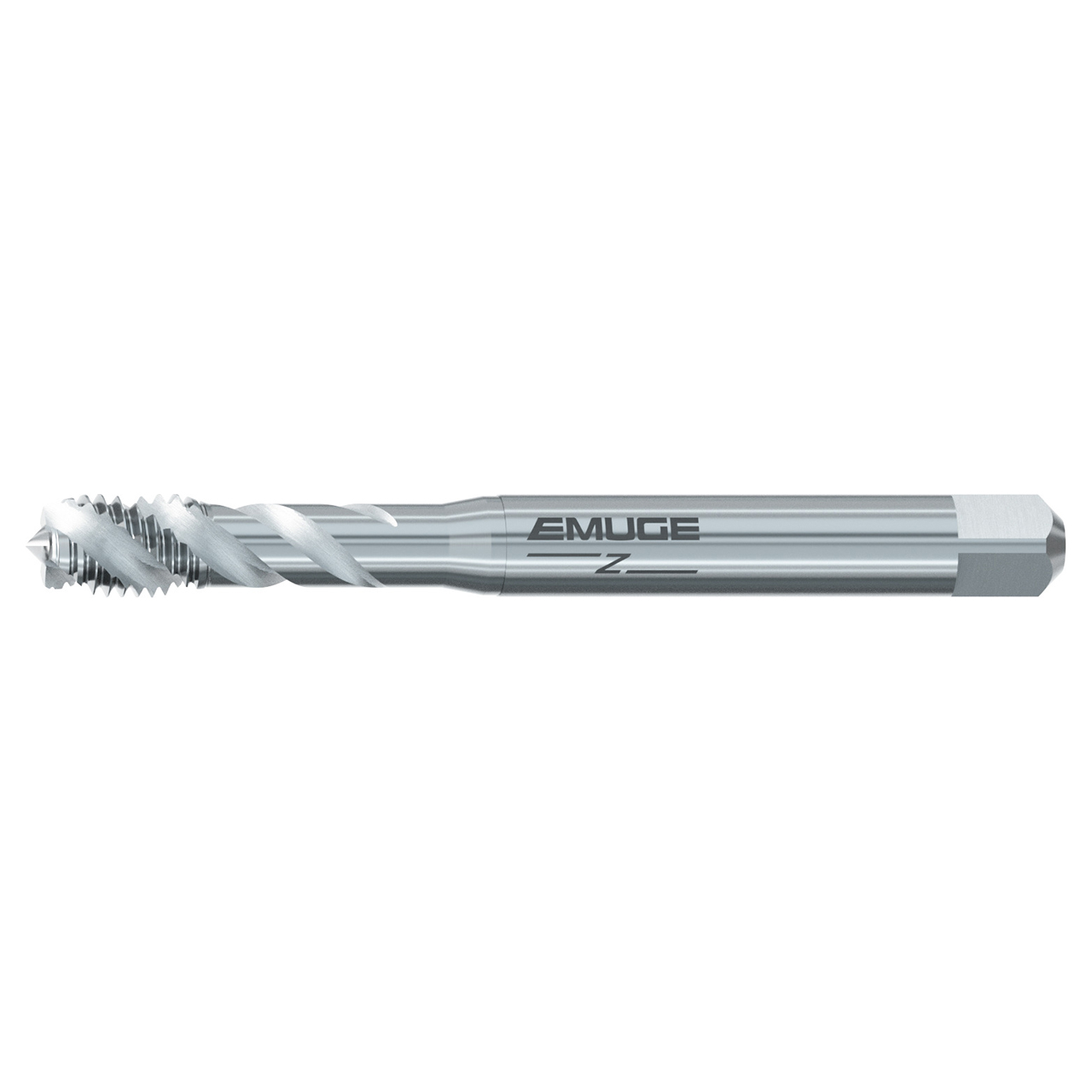

Emuge BU503560.5010 | 5/16"-18 Thread Size x 3.543" OAL 3 Flute Bright Coated Spiral Flute Tap

Emuge BU503560.5010 | 5/16"-18 Thread Size x 3.543" OAL 3 Flute Bright Coated Spiral Flute Tap

SKU: 15038867 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$79.34 $77.75
(You save $1.59)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Enorm Z design is typically for blind hole threads in long chipping materials
  • Bright surface finish
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
  • Longer tool life and more consistent thread quality

Product Specifications
Manufacturer Part NumberBU503560.5010
Thread Size5/16"-18"
Thread Diameter Size (Inch)5/16"
Thread StandardUNC
Thread per Inch (TPI)18 TPI
Tap Square (Decimal Inch)0.238"
Thread Length (Decimal Inch)0.787"
Overall Length (Decimal Inch)3.543"
Shank Machine Side Connection Diameter (Decimal Inch)0.318"
Thread Tolerance Class3B
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionLeft Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)45 Degree
Cutting Edge MaterialHSSE
CoatingBright
Tool TypeEnorm Z
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
