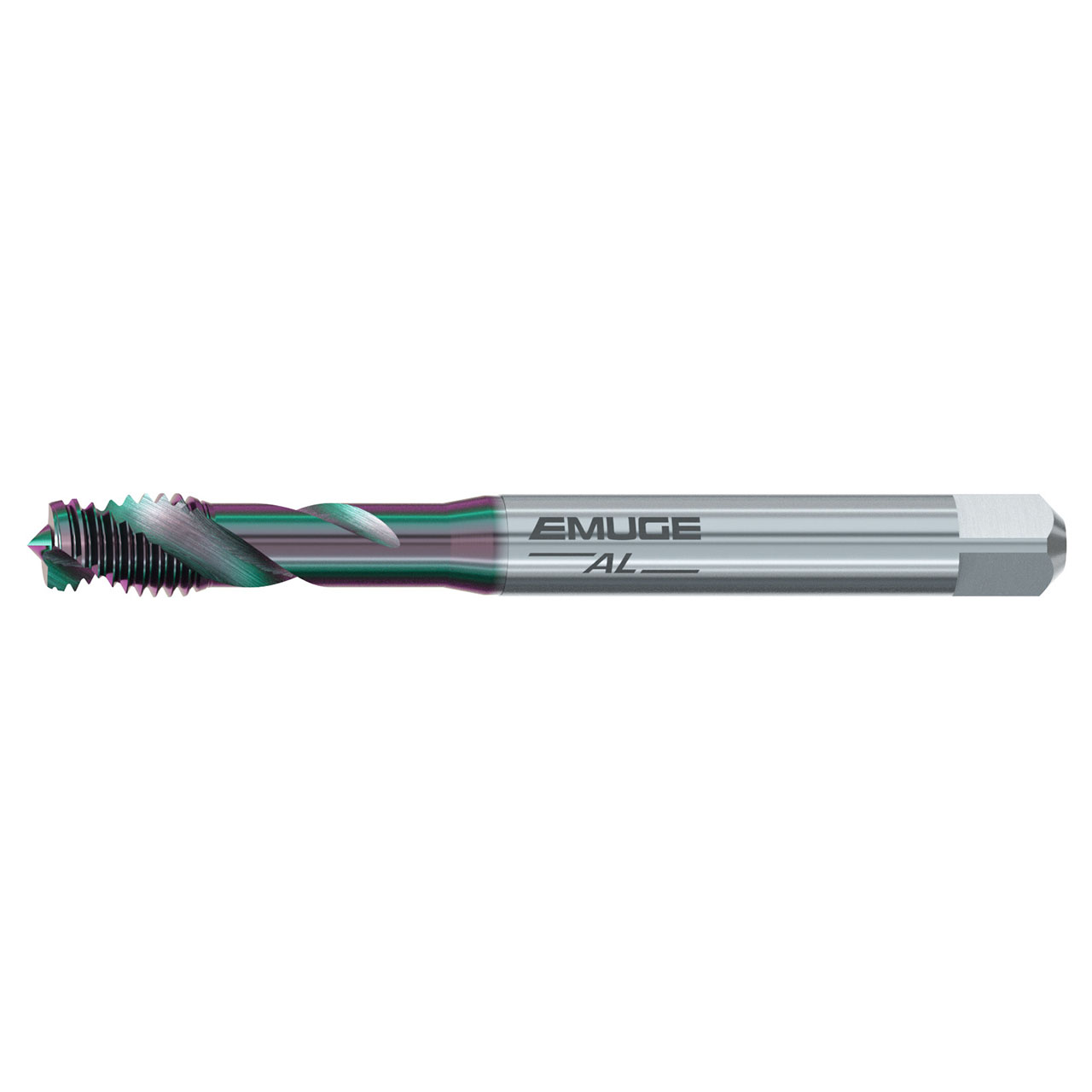

Emuge BU503G10.5009 | #10-24 Thread Size x 0.417" Thread Length x 0.286" Tap Square 3 Flute GLT-104 Coated Spiral Flute Tap

Emuge BU503G10.5009 | #10-24 Thread Size x 0.417" Thread Length x 0.286" Tap Square 3 Flute GLT-104 Coated Spiral Flute Tap

SKU: 18019759 Weight: 0.02 LBS Minimum Purchase: 1 unit
UPC:
$69.17 $67.79
(You save $1.38)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Enorm AL design is typically for blind hole threads in long chipping materials such as wrought aluminum alloys.
  • The fast spiral flute (45 Degree) provides good chip removal from blind holes
  • GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU503G10.5009
Thread Size#10-24
Thread Diameter Size#10
Thread Per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.286"
Thread Length (Decimal Inch)0.417"
Overall Length (Decimal Inch)2.756"
Length GroupDIN Length
Number of Flutes3
Flute Helix Angle (Degree)45 Degree
Dimensional StandardDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Thread StandardUNC
Thread Tolerance Class3B
Tap Chamfer2 -3 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingGLT-104
Product TypeSpiral Flute Tap
