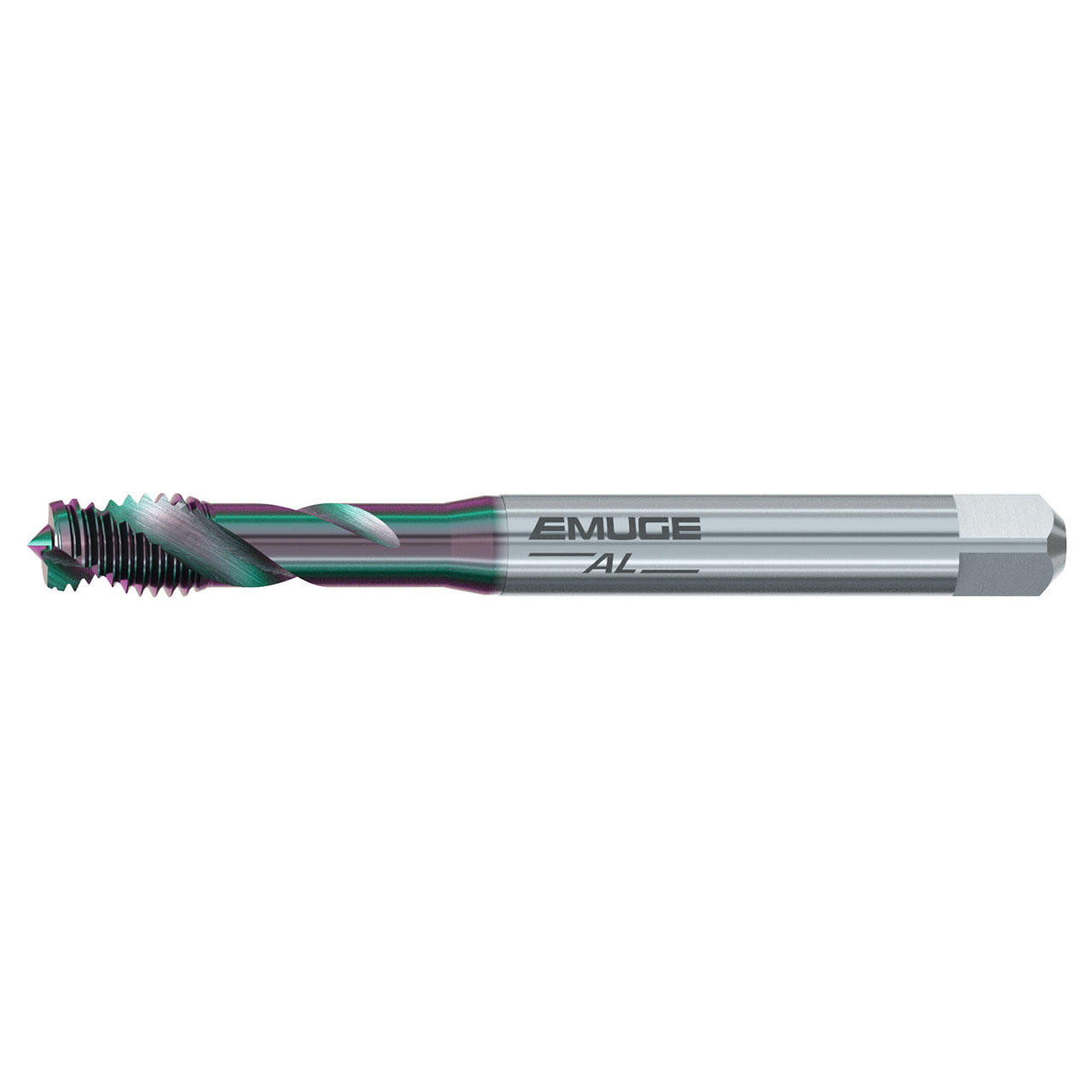

Features:
- The Enorm AL design is typically for blind hole threads in long chipping materials.
- The fast spiral flute provides good chip removal from blind holes
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU503G10.5045 |
| Thread Size | 3/8"-24 |
| Thread Diameter Size | 3/8" |
| Thread Per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.286" |
| Thread Length (Decimal Inch) | 0.787" |
| Overall Length (Decimal Inch) | 3.937" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Dimensional Standard | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Thread Standard | UNF |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2 -3 P |
| Tap Chamfer Form | E |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
3/8-24"
Thread Diameter Size:
3/8"
Thread Per Inch (TPI):
24 TPI
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Thread Length (Inch):
48/61"
Thread Length (Decimal Inch):
0.7870"
Thread Length (mm):
19.99mm
Number of Flutes:
2
Coating:
GLT-104
Flute Helix Angle (Degree):
45 Degree
