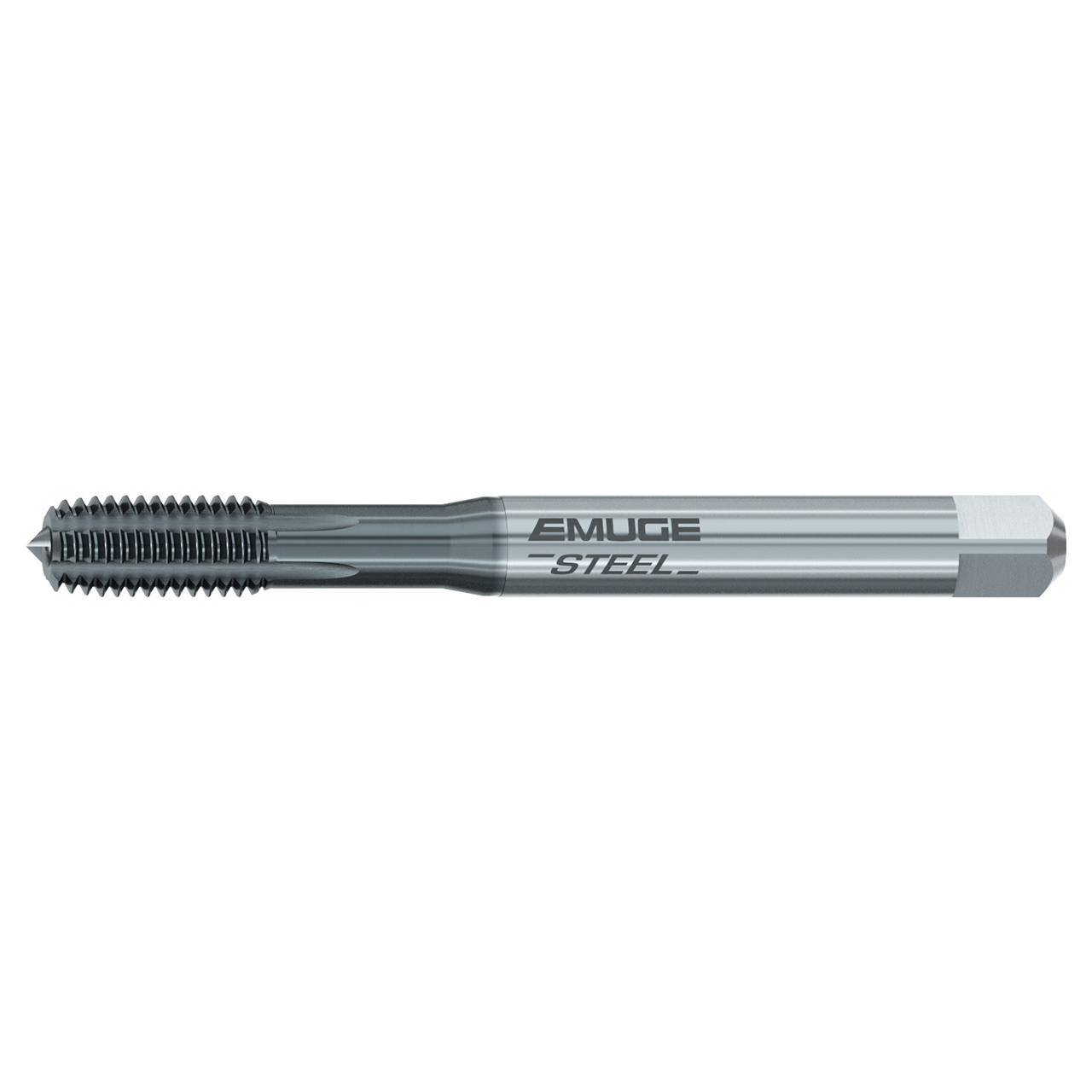

Emuge BU929000.5636 | #8-36 Thread Size x 3.150" OAL Flute TICN Coated Thread Forming STI Tap

$66.71
Brand:
Emuge
Thread Size:
#8-36
Finish/Coating:
TICN
Overall Length (Inch):
3-5/32"
Overall Length (Decimal Inch):
3.1500"
Overall Length (mm):
80.01mm
Thread Standard:
STI-UNF
Shank Diameter (Inch):
7/32"
Shank Diameter (Decimal Inch):
0.2200"
Shank Diameter (mm):
5.59mm
interval quantity:
1
SKU:
15039136
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Features:

  • The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
  • Steel Alloys & Long Chipping Materials
  • TICN coated for additional wear resistance
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberBU929000.5636
Thread Size#8-36
Thread Diameter Size#8
Thread StandardSTI-UNF
Thread per Inch (TPI)36 TPI
Tap Square (Decimal Inch)0.165"
Thread Length (Decimal Inch)0.512"
Overall Length (Decimal Inch)3.150"
Shank Machine Side Connection Diameter (Decimal Inch)0.220"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRoll Form - Druck
ApplicationSTI Taps
Product TypeThread Forming STI Tap
