Features:

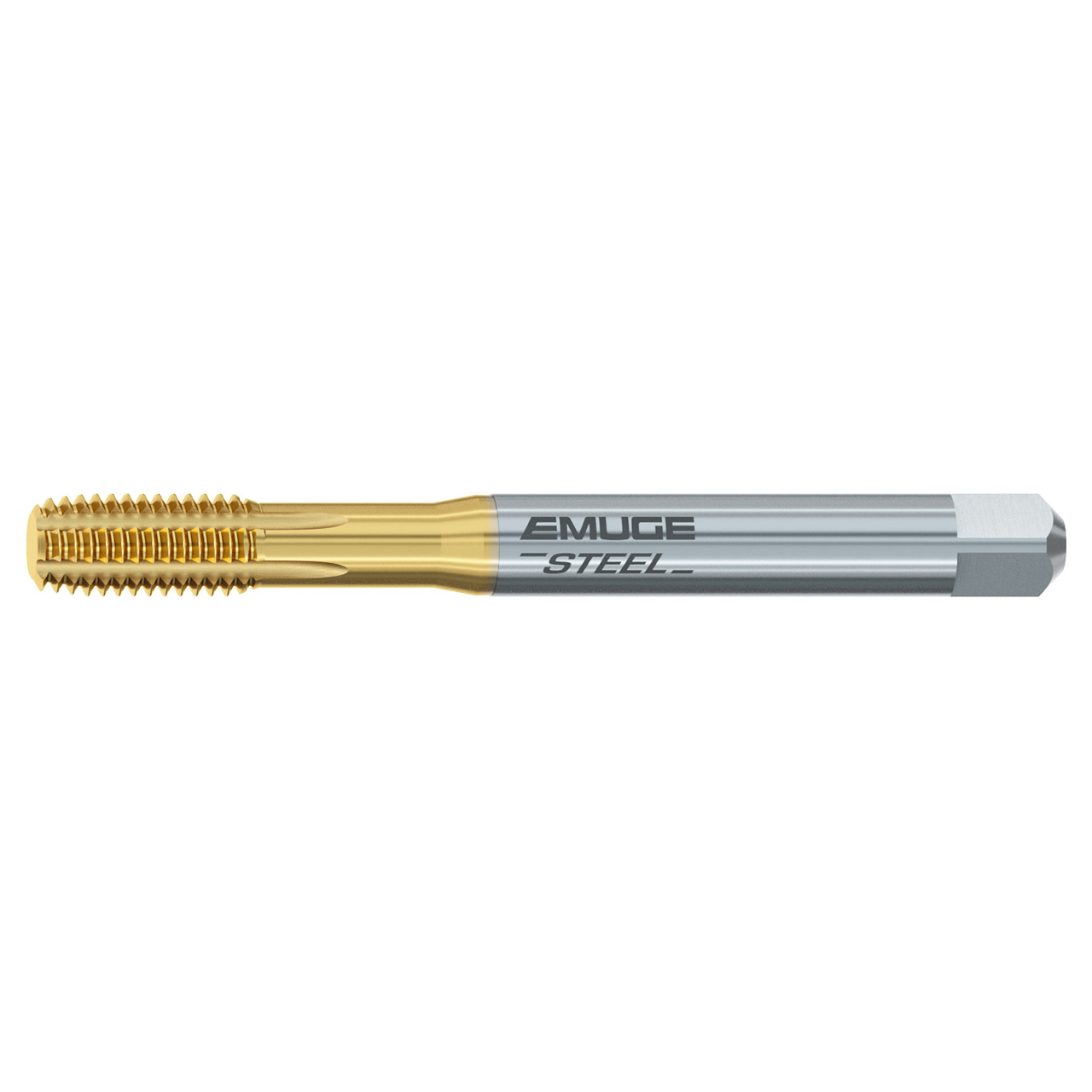

- The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
- Steel Alloys & Long Chipping Materials
- TICN coated for additional wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | BU931400.5661 |
| Thread Size | LK 12-24 |
| Thread Diameter Size | LK 12 |
| Thread Standard | LK-UNC |
| Thread per Inch (TPI) | 24 TPI |
| Tap Square (Decimal Inch) | 0.165" |
| Thread Length (Decimal Inch) | 0.630" |
| Overall Length (Decimal Inch) | 3.150" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.220" |
| Thread Tolerance Class | BT |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Class of Fit | LK |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | Roll Form - Druck |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
LK 12-24
Finish/Coating:
TIN
Thread Standard:
LK-UNC
