C0100501.0124-B

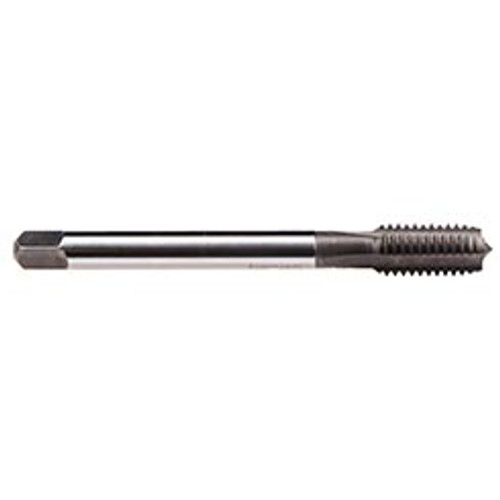

Emuge C0100501.0124 | M24x3.00mm Thread Size x 34.00mm Length x 18.00mm Shank x 160.00mm OAL 4 Flute NT Coated HSSE Straight Flute Tap

SKU: 15040973 Weight: 0.66 LBS Minimum Purchase: 1 unit
UPC:
$242.92 $238.06
(You save $4.86)
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch3
SizeM 24
Thread Limit6HX
Thread StandardM
Applicable MaterialHardened Steel, Cast Iron
ApplicationThrough and Blind Hole
Coolant FedNo
Coating/FinishNT
MaterialHSSE
TypeRekord A-H
Length GroupDIN Length
Number of Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)18 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)160 mm
Thread Length (mm)34 mm
Flute DirectionStraight
