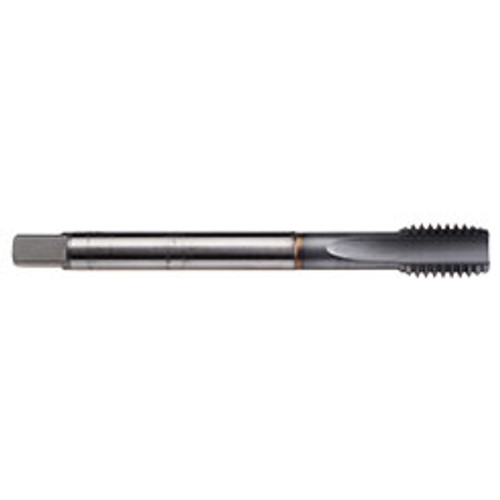

Emuge C0101001.0331 | M14 x 1.5 - Tap - Rekord A

$106.33 $104.21
(You save $2.12)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M14 X 1.5
Thread Limit:
6HX
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9371"
Overall Length (mm):
100mm
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
Bright
Thread Standard:
MF
interval quantity:
1
SKU:
15041009
UPC:
Weight:
0.16 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
C0101001.0331-B

Features:

  • Rekord A-Steel is a straight flute design best suited for short chipping steel material grades in through & blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch1.5
SizeM 14
Thread Limit6HX
Thread StandardMF
Applicable MaterialSteel & Cast Aluminum
ApplicationThrough and Blind Hole
Coolant FedNo
Coating/FinishBright
MaterialHSSE
TypeRekord A-Steel
Length GroupDIN Length
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)11 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)100 mm
Thread Length (mm)22 mm
Flute DirectionRight Hand
