Features:

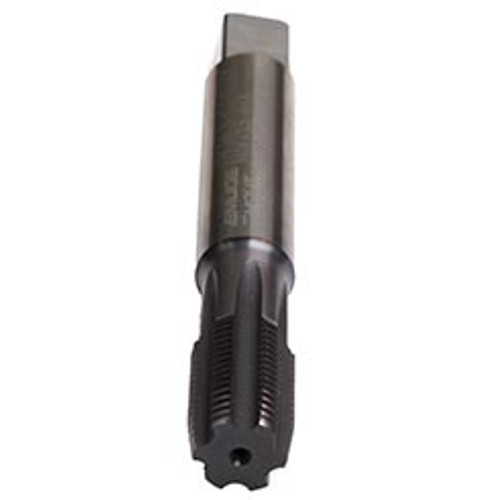

- Rekord A-HCUT straight flute tap for Whitworth pipe thread. For applications in hardened steel materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 2 |
| Size | M 16 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Hardened Steel |
| Application | Through and Blind Hole |
| Coolant Fed | No |
| Coating/Finish | TICN |
| Material | HSSE-PM |
| Type | Rekord A-HCUT |
| Length Group | DIN Length |
| Number of Flutes | 6 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 12 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 110 mm |
| Thread Length (mm) | 27 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M16 X 2
Thread Limit:
6HX
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3308"
Overall Length (mm):
110mm
Number of Flutes:
6
Chamfer:
2 -3 P
Material:
HSSE-PM
Finish/Coating:
TICN
Thread Standard:
M
interval quantity:
1
