Features:

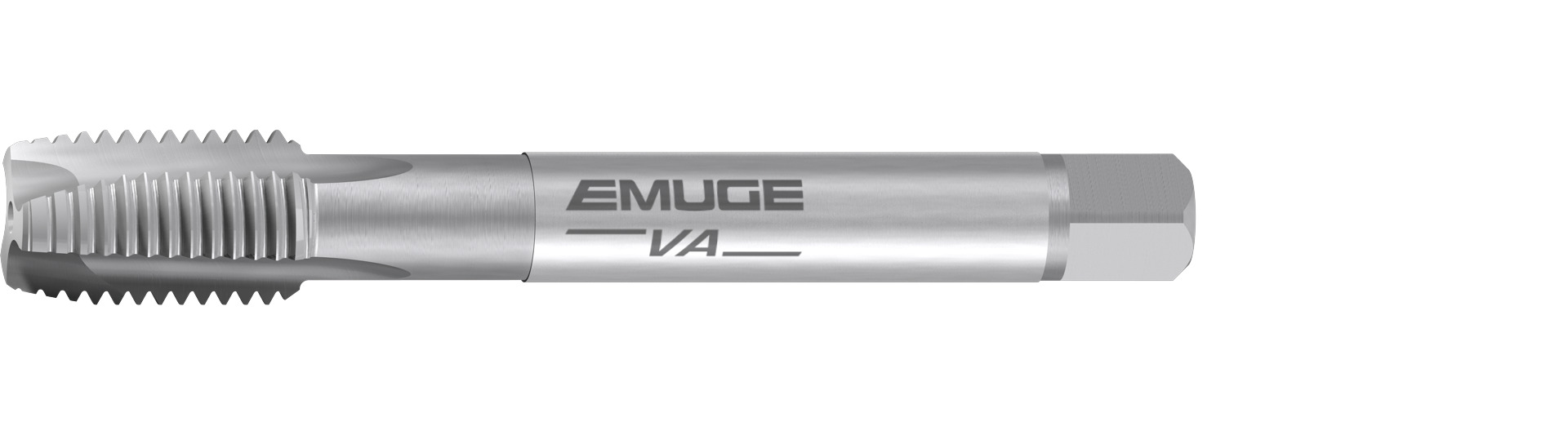

- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Chamfer | 4-5 P |
| Chamfer Form | B |
| Class | 6H |
| Pitch | 2.5 |
| Size | M 20 |
| Thread Standard | M |
| Coolant Fed | No |
| Coating/Finish | NT |
| Material | HSSE |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 16 mm |
| Dimension Standards | DIN/DIN |
| Overall Length (mm) | 140 mm |
| Thread Length (mm) | 32 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Ships:
From Manufacturer
interval quantity:
1
