Features:

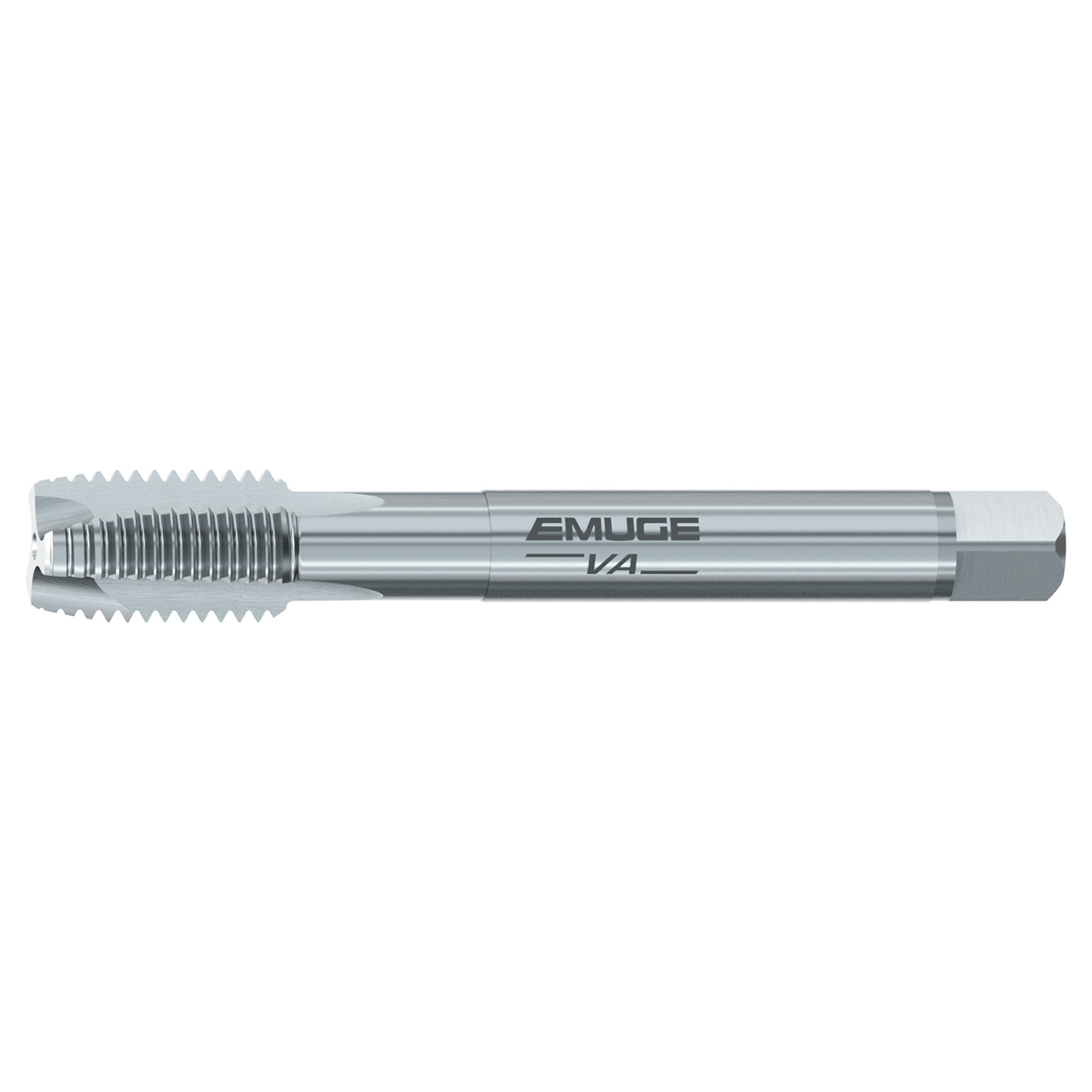

- Rekord B-VA design is for stainless steel and steel alloys
- Spiral point creates tight curled chips that are pushed ahead of the tap
- Specially adapted flute shape, rake angle and relief angle for long tool life
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0203020.0124 |
| Thread Size | M 24x3 |
| Thread Diameter Size | M 24 |
| Thread Standard | M |
| Thread Pitch (mm) | 3.00mm |
| Tap Square (mm) | 14.50mm |
| Thread Length (mm) | 34.00mm |
| Overall Length (mm) | 160.00mm |
| Thread Tolerance Class | ISO 3/6G |
| Tap Chamfer | 4-5 P |
| Tap Chamfer Form | B |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | NT |
| Tool Type | Rekord B-VA |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Material:
HSSE
Thread Standard:
M
Cutting Direction:
Straight
Finish/Coating:
NT
Material Application:
Spiral Point Taps
interval quantity:
1
