Features:

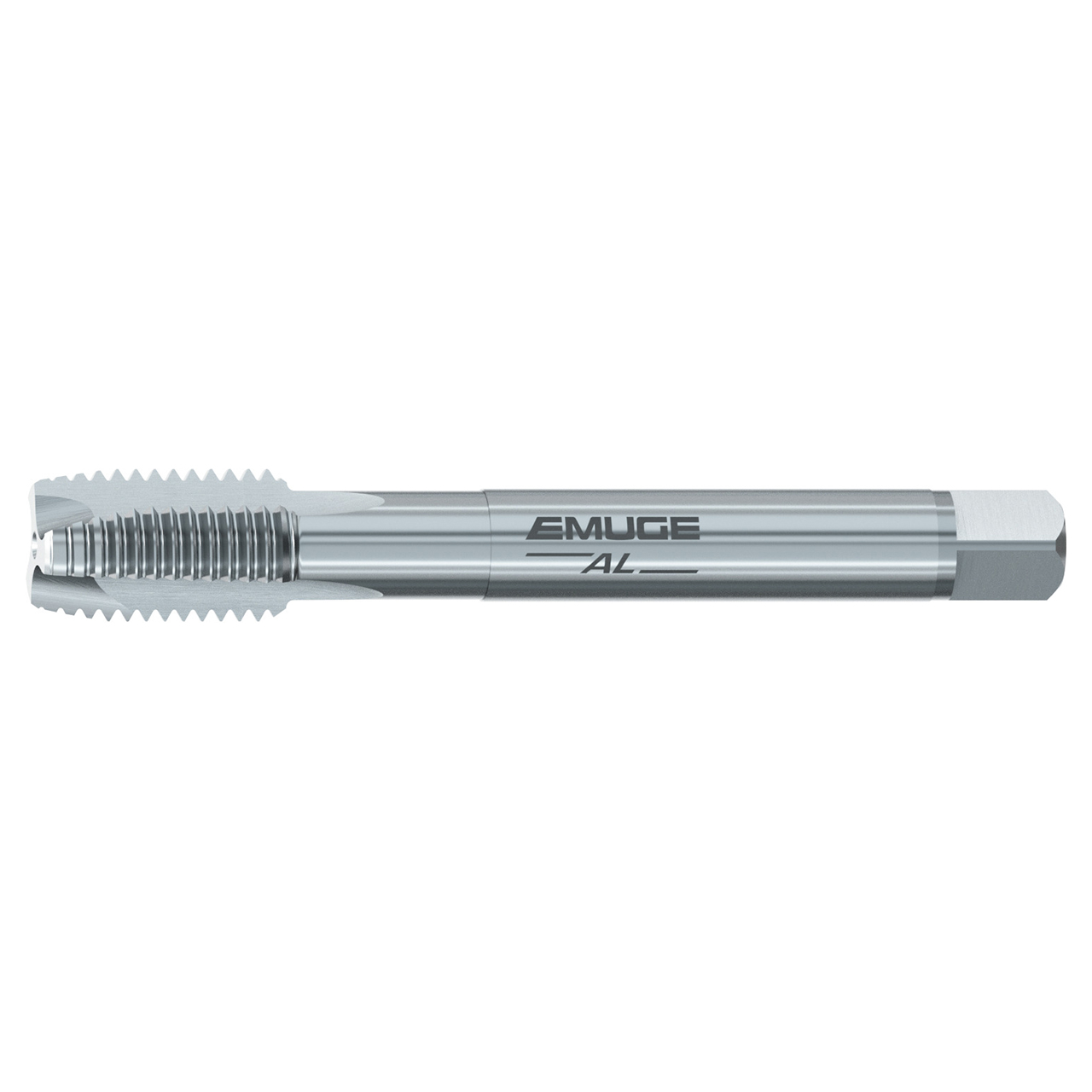

- Rekord B-AL tap is a plug style tap designed for wrought aluminum materials
- The spiral point ensures optimum chip removal in the feed direction
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0204500.0112 |
| Thread Size | M 12x1.75 |
| Thread Diameter Size | M 12 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.75mm |
| Tap Square (mm) | 7.00mm |
| Thread Length (mm) | 24.00mm |
| Overall Length (mm) | 110.00mm |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 2 |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | EMUGE AL |
| Application | Spiral Point Taps |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 12x1.75
Number of Flutes:
2
Thread Standard:
M
Finish/Coating:
Bright
