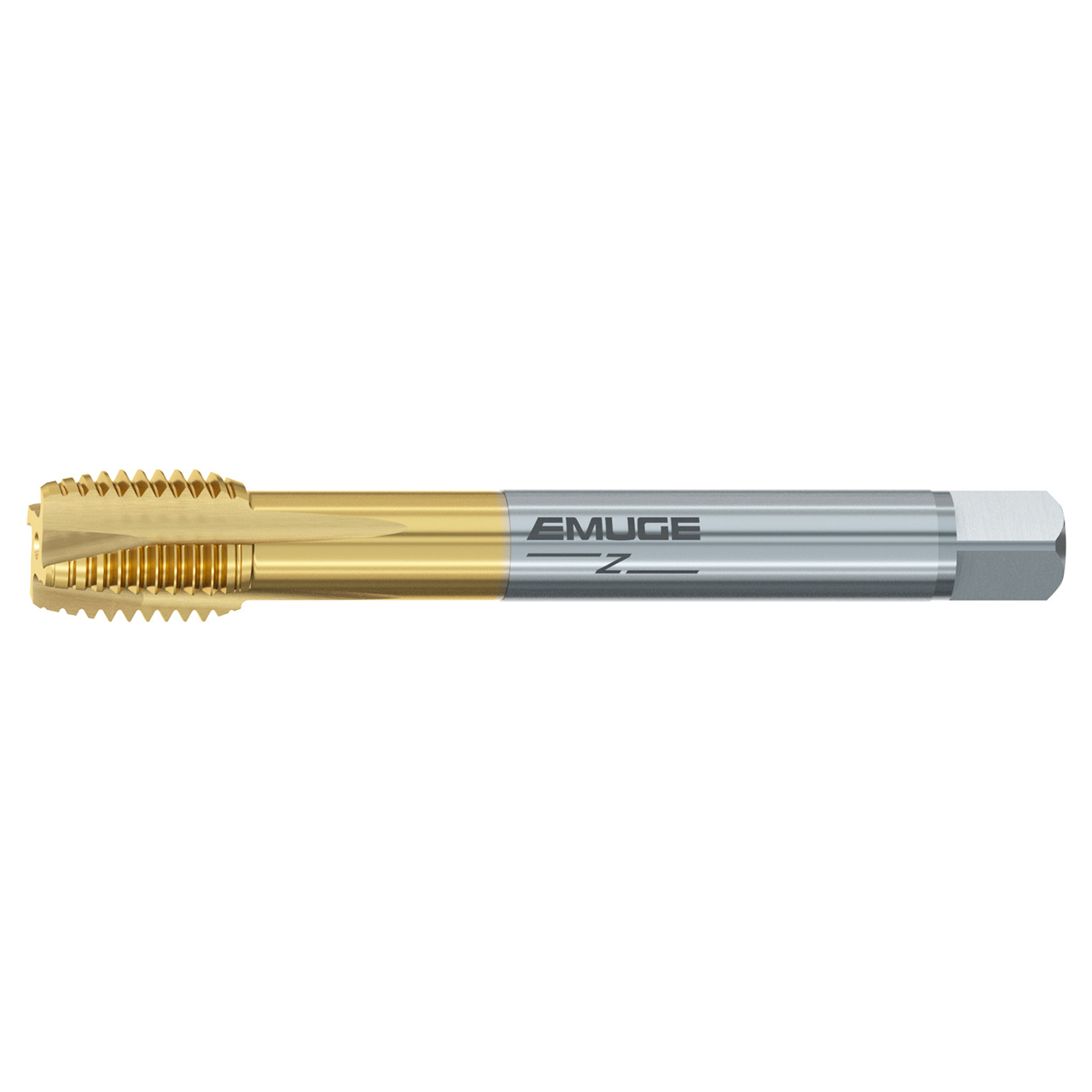

Emuge C0208F01.0120 | 2.50mm Thread Pitch x M 20x2.5 Thread Size x 140.00mm OAL TiN-70 Coated Spiral Point Tap

$192.02
Brand:
Emuge
Thread Size:
M 20x2.5
Number of Flutes:
4
Thread Standard:
M
Finish/Coating:
TiN-70
interval quantity:
1
SKU:
15041210
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Rekord B-Z design is typically for through hole applications in long-chipping materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • TIN 70 coated for additional heat and wear resistance
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberC0208F01.0120
Thread SizeM 20x2.5
Thread Diameter SizeM 20
Thread StandardM
Thread Pitch (mm)2.50mm
Tap Square (mm)12.00mm
Thread Length (mm)25.00mm
Overall Length (mm)140.00mm
Thread Tolerance Class6HX
Tap Chamfer4-5 P
Tap Chamfer FormB
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute4
Cutting Edge MaterialHSSE-PM
CoatingTiN-70
Tool TypeRekord B-Z
ApplicationSpiral Point Taps
Product TypeSpiral Point Tap
