Features:

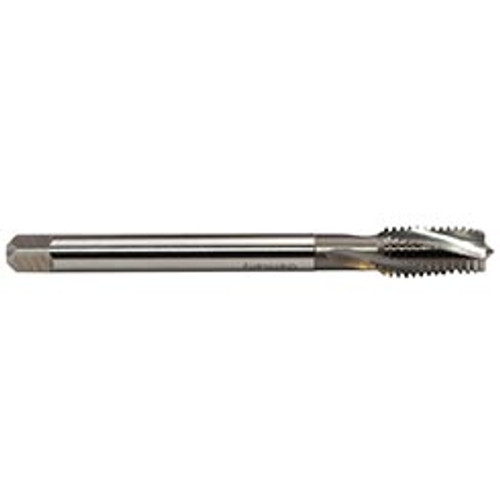

- Rekord D tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 2 |
| Size | M 22 |
| Thread Limit | ISO 2/6H |
| Thread Standard | MF |
| Applicable Material | Steel Alloys & Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord D |
| Length Group | DIN Length |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 18 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 140 mm |
| Thread Length (mm) | 20 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M22 X 2
Thread Limit:
ISO 2/6H
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
Bright
Flute Direction:
Right Hand
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5119"
Overall Length (mm):
140mm
