Features:

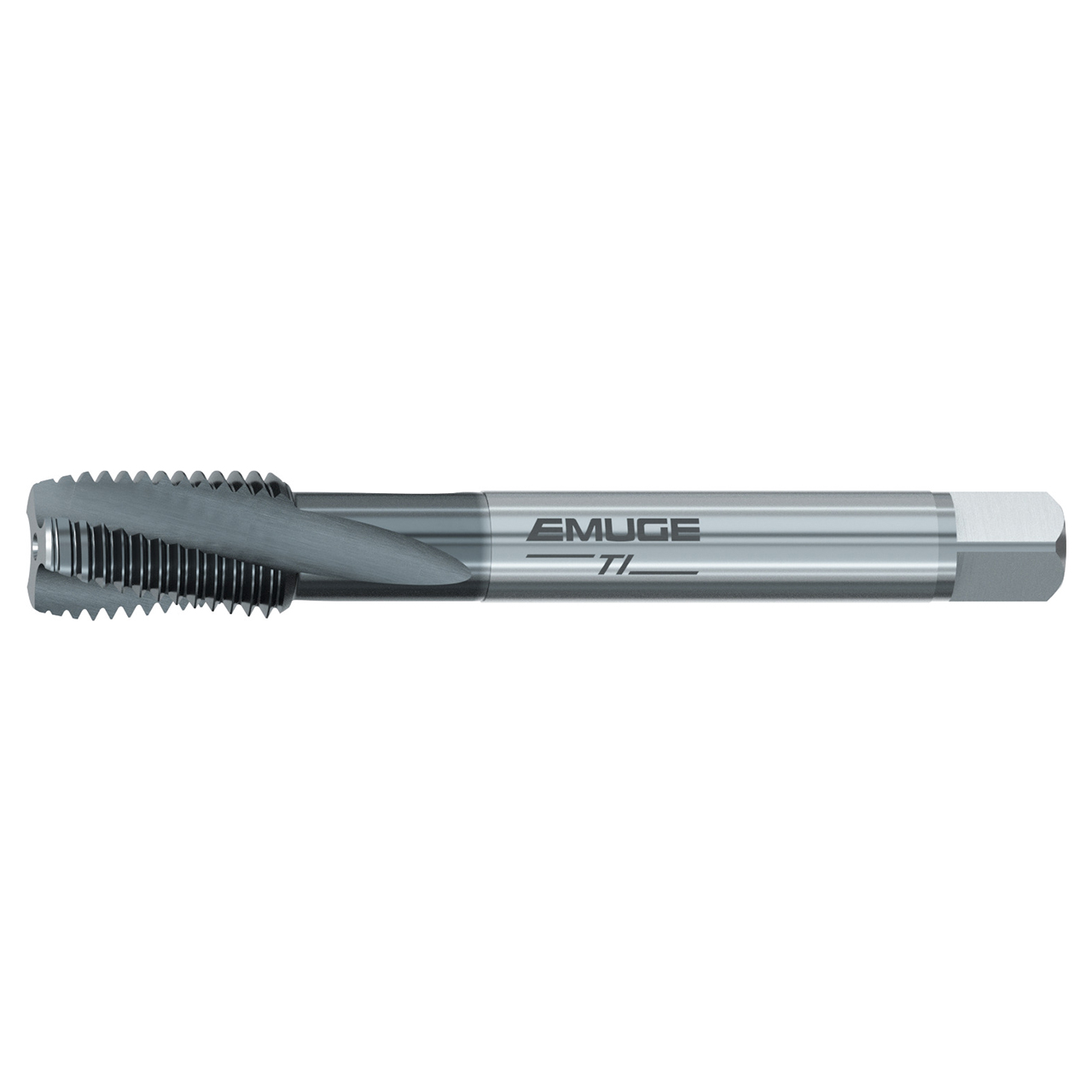

- Rekord D-TI tap is a slow spiral design for blind holes
- Best suited for titanium and high tensile strength materials
- Spiral point creates tight curled chips that are pushed ahead of the tap
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0459601.0124 |
| Thread Size | M 24x3 |
| Thread Diameter Size | M 24 |
| Thread Standard | M |
| Thread Pitch (mm) | 3.00mm |
| Tap Square (mm) | 14.50mm |
| Thread Length (mm) | 34.00mm |
| Overall Length (mm) | 160.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TICN |
| Tool Type | Rekord D-TI |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 24x3
Number of Flutes:
3
Finish/Coating:
TICN
Flute Direction:
Right Hand
Overall Length (Inch):
6-19/64"
Overall Length (Decimal Inch):
6.2992"
Overall Length (mm):
160.00mm
