Features:

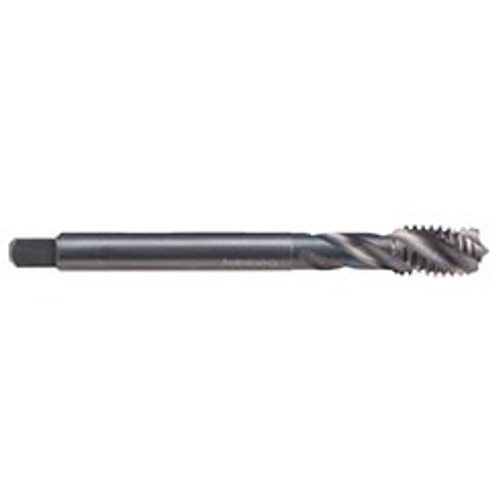

- The Enorm VA design is typically for blind hole threads in long chipping materials. The fast spiral flute (35 Degree) provides good chip removal from blind holes
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 1.5 |
| Size | M 30 |
| Thread Limit | ISO 2/6H |
| Thread Standard | MF |
| Applicable Material | Alloyed Steel & Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | NE2 |
| Material | HSSE |
| Type | Enorm VA |
| Length Group | DIN Length |
| Number of Flutes | 6 |
| Helix Angle (Degrees) | 35 Degree |
| Shank Diameter (mm) | 22 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 150 mm |
| Thread Length (mm) | 22 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M30 X 1.5
Thread Limit:
ISO 2/6H
Number of Flutes:
6
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NE2
Flute Direction:
Right Hand
Overall Length (Inch):
5-29/32"
Overall Length (Decimal Inch):
5.9056"
Overall Length (mm):
150mm
