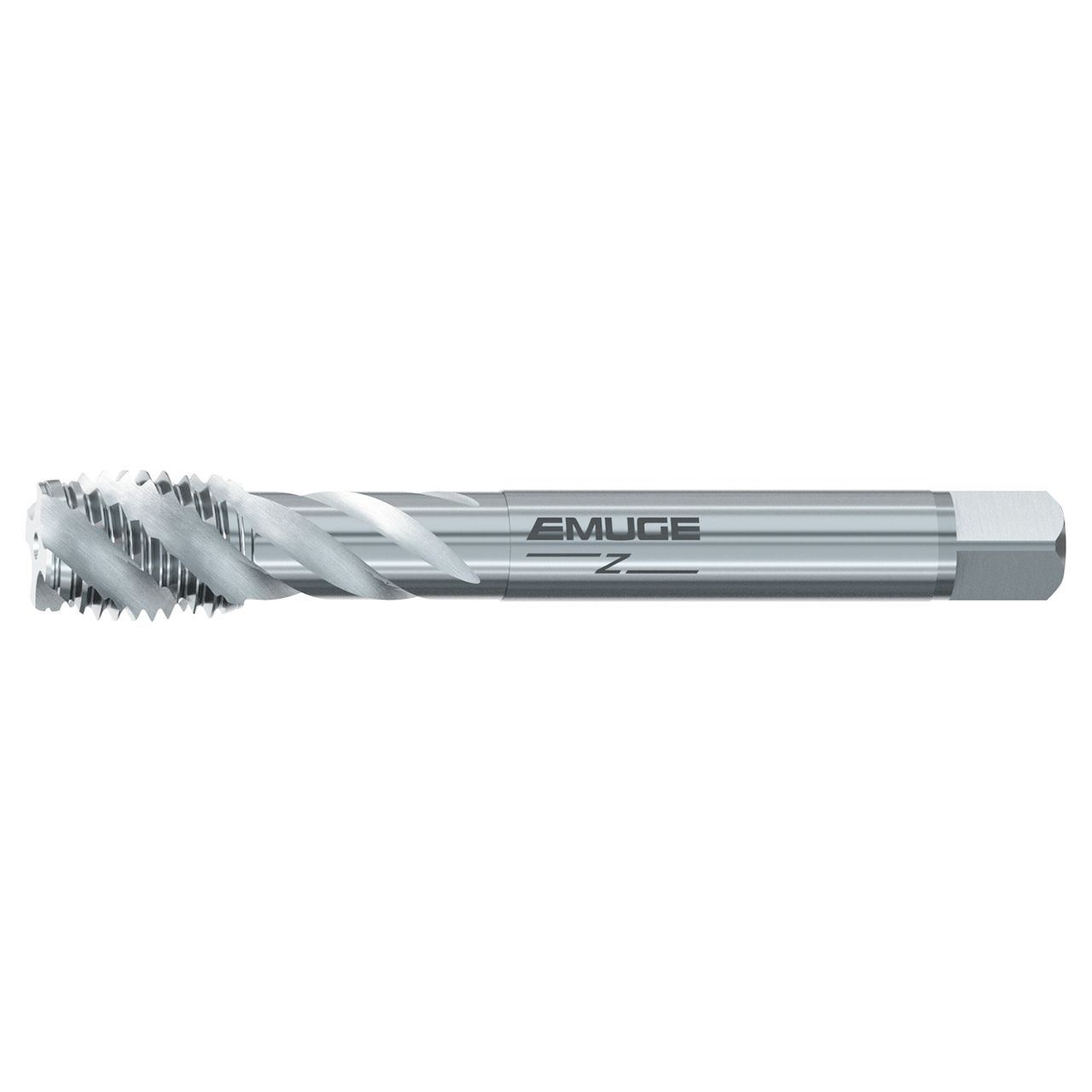

Features:
- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0513501.4037 |
| Thread Size | 3/8"-19" |
| Thread Diameter Size (Inch) | 3/8" |
| Thread Standard | G (BSP) |
| Thread per Inch (TPI) | 19 TPI |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 100.00mm |
| Tap Chamfer | 1.5-2 P |
| Tap Chamfer Form | E |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 5 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Enorm Z/E |
| Application | Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
3/8-19"
Thread Standard:
G (BSP)
Finish/Coating:
Bright
Number of Flutes:
5
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4330"
Shank Diameter (mm):
12.00mm
