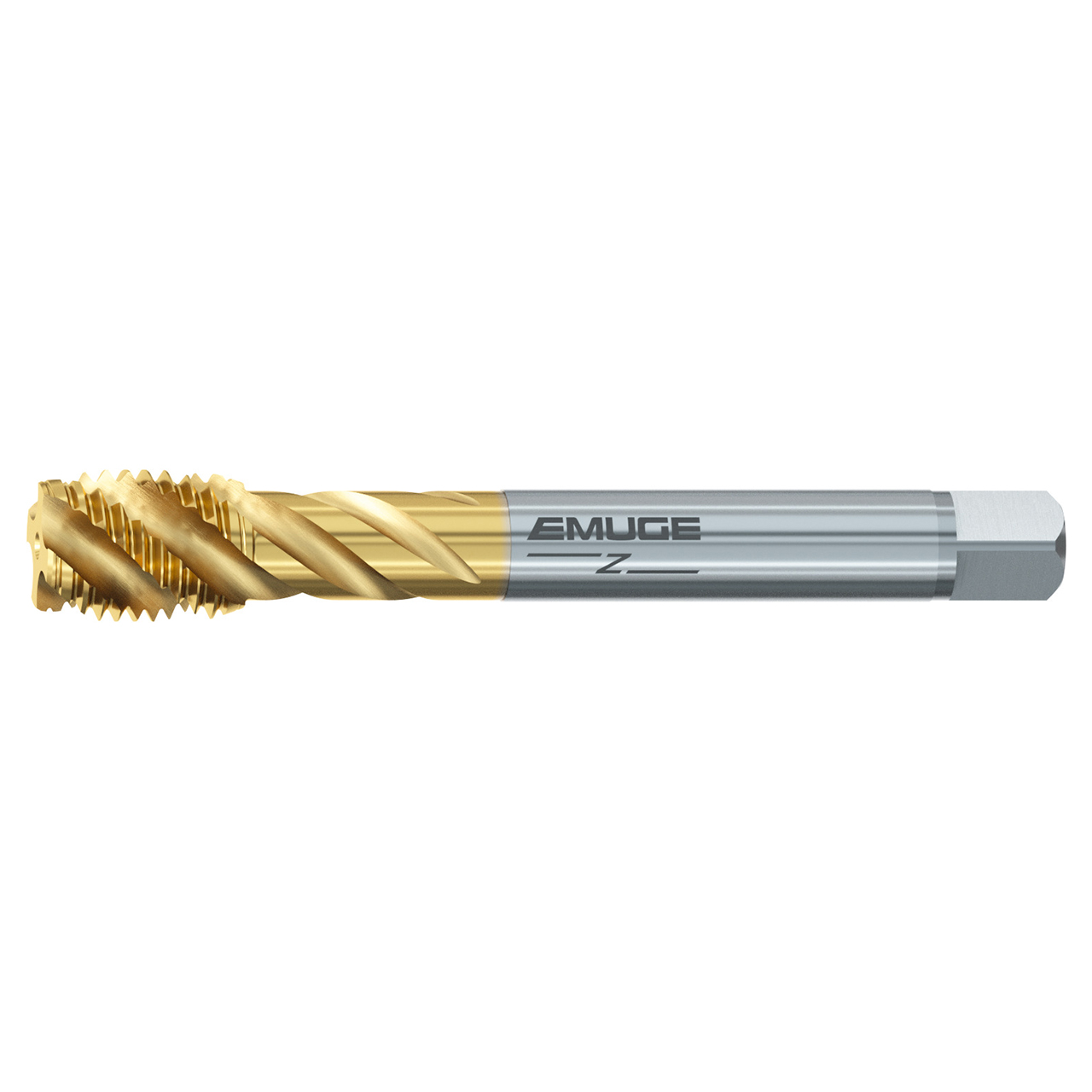

Emuge C0513701.4035 | 1/8"-28" Thread Size x 45 Degree Helix Angle 4 Flute TIN Coated Interrupted Thread Pipe Tap

$150.66 $147.65
(You save $3.01)
Brand:
Emuge
Thread Size:
1/8-28"
Thread Standard:
G (BSP)
Finish/Coating:
TIN
Number of Flutes:
4
Shank Diameter (Inch):
9/32"
Shank Diameter (Decimal Inch):
0.2755"
Shank Diameter (mm):
7.00mm
interval quantity:
1
SKU:
17978988
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge C0513701.4035 | 1/8"-28" Thread Size x 45 Degree Helix Angle 4 Flute TIN Coated Interrupted Thread Pipe Tap

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • The fast spiral flute provides good chip removal from blind holes
  • TIN coated for additional heat and wear resistance
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberC0513701.4035
Thread Size1/8"-28"
Thread Diameter Size (Inch)1/8"
Thread StandardG (BSP)
Thread per Inch (TPI)28 TPI
Thread Length (mm)18.00mm
Overall Length (mm)90.00mm
Tap Chamfer1.5-2 P
Tap Chamfer FormE
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute4
Flute Helix Angle (Degree)45 Degree
Cutting Edge MaterialHSSE
CoatingTIN
Tool TypeEnorm Z/E
ApplicationPipe Taps
Product TypeInterrupted Thread Pipe Tap
