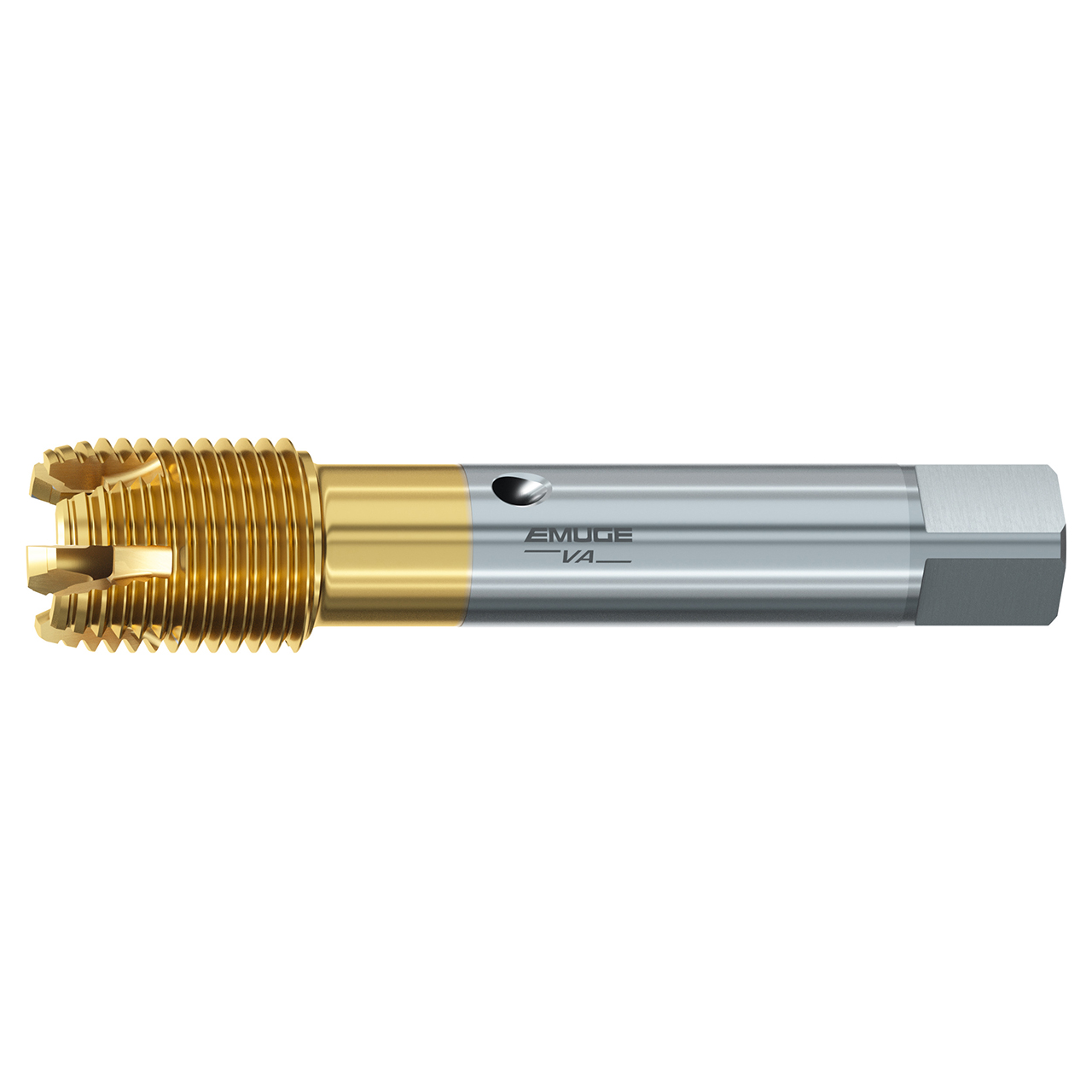

Emuge C0803101.0130 | M30x3.50mm Thread Size x 22.00mm Shank x 180.00mm OAL NE2 Coated HSSE Spiral Point Tap

Emuge C0803101.0130 | M30x3.50mm Thread Size x 22.00mm Shank x 180.00mm OAL NE2 Coated HSSE Spiral Point Tap

SKU: 17985210 Weight: 1.46 LBS Minimum Purchase: 1 unit
UPC:
$1,146.54 $1,123.61
(You save $22.93)
Shipping: Free Shipping

About This Item

Features:

  • Specially designed large size tapping with a cutting crown for excellent self-guidance when beginning to cut.
  • Frontal recess (bell-shaped chip collector) for receiving the chip material in blind hole threads
  • Increased profile clearance angle reduces friction and thus the inclination to cold pressure welds
  • Preferably to be used with paste lubrication!

Product Specifications
Manufacturer Part NumberC0803101.0130
Thread SizeM 30x3.5
Thread Diameter SizeM 30
Overall Length (mm)180.00mm
Length GroupExtra Length
Dimensional StandardDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Thread StandardM
Tap Chamfer2 -3 P
Tap Chamfer FormC
Coolant Supply PropertyExternal
Cutting Edge MaterialHSSE
CoatingNE2
Product TypeStraight Flute Tap
