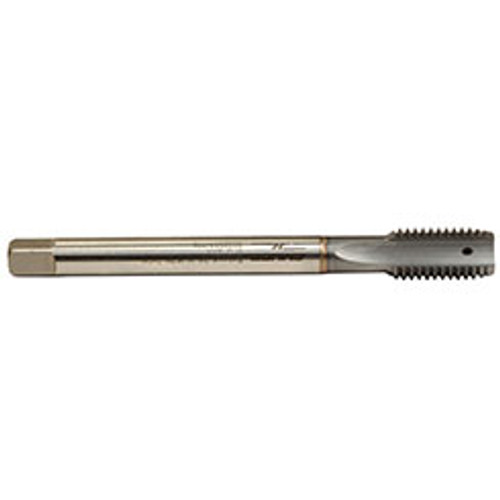

Emuge C1069101.0112 | M12x1.75mm Thread Size x 24.00mm Length x 9.00mm Shank x 110.00mm OAL 3 Flute TICN Coated HSSE Straight Flute Tap

SKU: 15041694 Weight: 0.10 LBS Minimum Purchase: 1 unit
UPC:
$184.06 $180.38
(You save $3.68)
Ships: From Manufacturer
Shipping: Calculated at Checkout

About This Item

Features:

  • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels)
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch1.75
SizeM 12
Thread Limit6HX
Thread StandardM
Applicable MaterialCast Iron & Hardened Steel
ApplicationThrough and Blind Hole
Coolant FedRadial
Coating/FinishTICN
MaterialHSSE
TypeRekord A-H
Length GroupDIN Length
Number of Flutes3
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)9 mm
Dimension StandardsDIN/DIN
Shank Toleranceh9
Overall Length (mm)110 mm
Thread Length (mm)24 mm
Flute DirectionStraight
