Features:

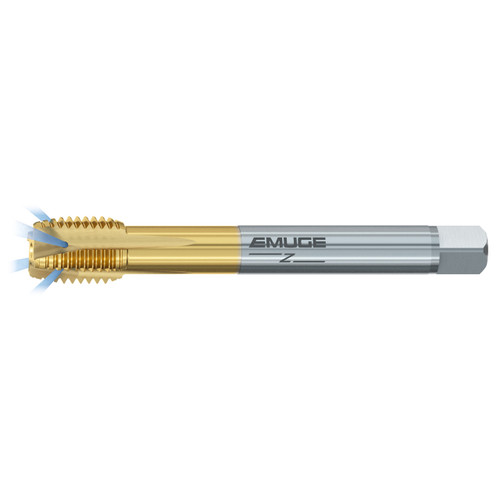

- Rekord B-Z design is typically for through hole applications in long-chipping materials such as stainless steel, steel and aluminum alloys.
- Radial coolant fed to maximize chip evacuation and improve thread quality
- TIN-70 coated for wear resistance and surface lubricity
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C1088F21.0120 |
| Thread Size | M 20x2.5 |
| Thread Diameter Size | M 20 |
| Tap Square (mm) | 12.00mm |
| Thread Length (mm) | 25.00mm |
| Overall Length (mm) | 140.00mm |
| Length Group | DIN Length |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | M |
| Thread Tolerance Class | 6GX |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | HSSE-PM |
| Coating | TIN-70 |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M 20x2.5
Thread Diameter Size:
M 20
Overall Length (Inch):
5-22/43"
Overall Length (Decimal Inch):
5.5118"
Overall Length (mm):
140.00mm
Thread Length (Inch):
63/64"
Thread Length (Decimal Inch):
0.9843"
Thread Length (mm):
25.00mm
Coating:
TIN-70
