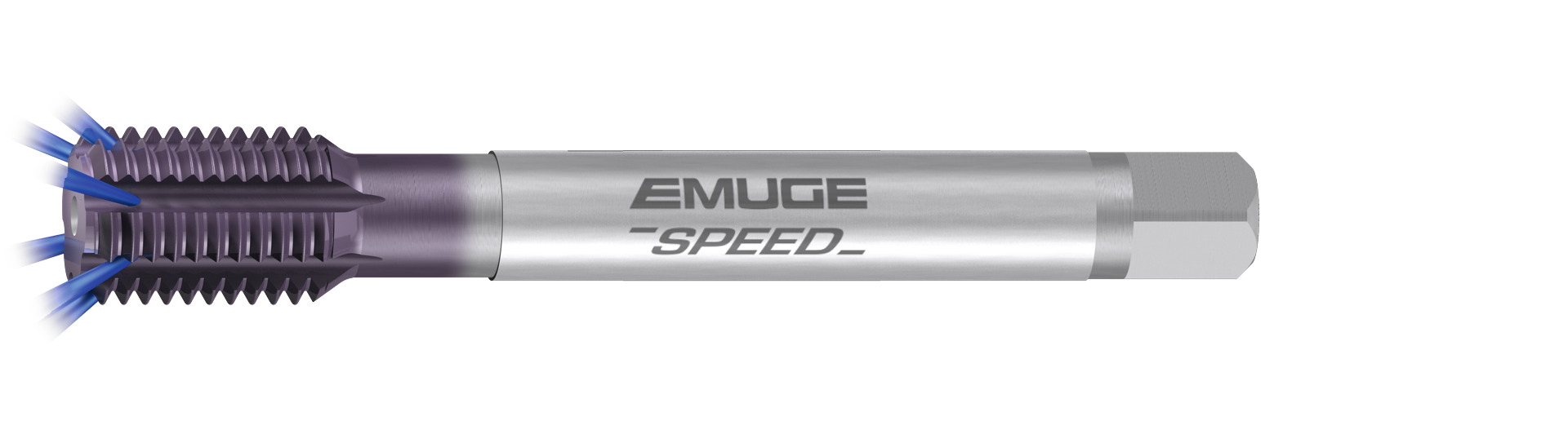

Emuge C505Q800.0302 | M 12x1.25 - Tap - Druck Roll Form - GAL - Carbide

Emuge C505Q800.0302 | M 12x1.25 - Tap - Druck Roll Form - GAL - Carbide

Name: Emuge C505Q800.0302 | M 12x1.25 - Tap - Druck Roll Form - GAL - Carbide
Brand: Emuge
SKU: 15045559
Price: 1280.71 USD
Availability: InStock

SKU: 15045559 Weight: 0.10 LBS Minimum Purchase: 1 unit

UPC:

$1,306.85 $1,280.71

(You save $26.14)

Total Price: $1,280.71

Quantity:

Ships: From Manufacturer

Shipping: Free Shipping

About This Item

Product Specifications

Chamfer	1.5-2 P
Chamfer Form	E
Pitch	1.25
Size	M 12x1.25
Thread Limit	6HX
Thread Standard	M
Coolant Fed	Radial
Coating/Finish	TICN
Material	Carbide
Shank Diameter (mm)	9 mm
Dimension Standards	DIN/DIN
Shank Tolerance	h9
Overall Length (mm)	100 mm
Flute Direction	Straight
