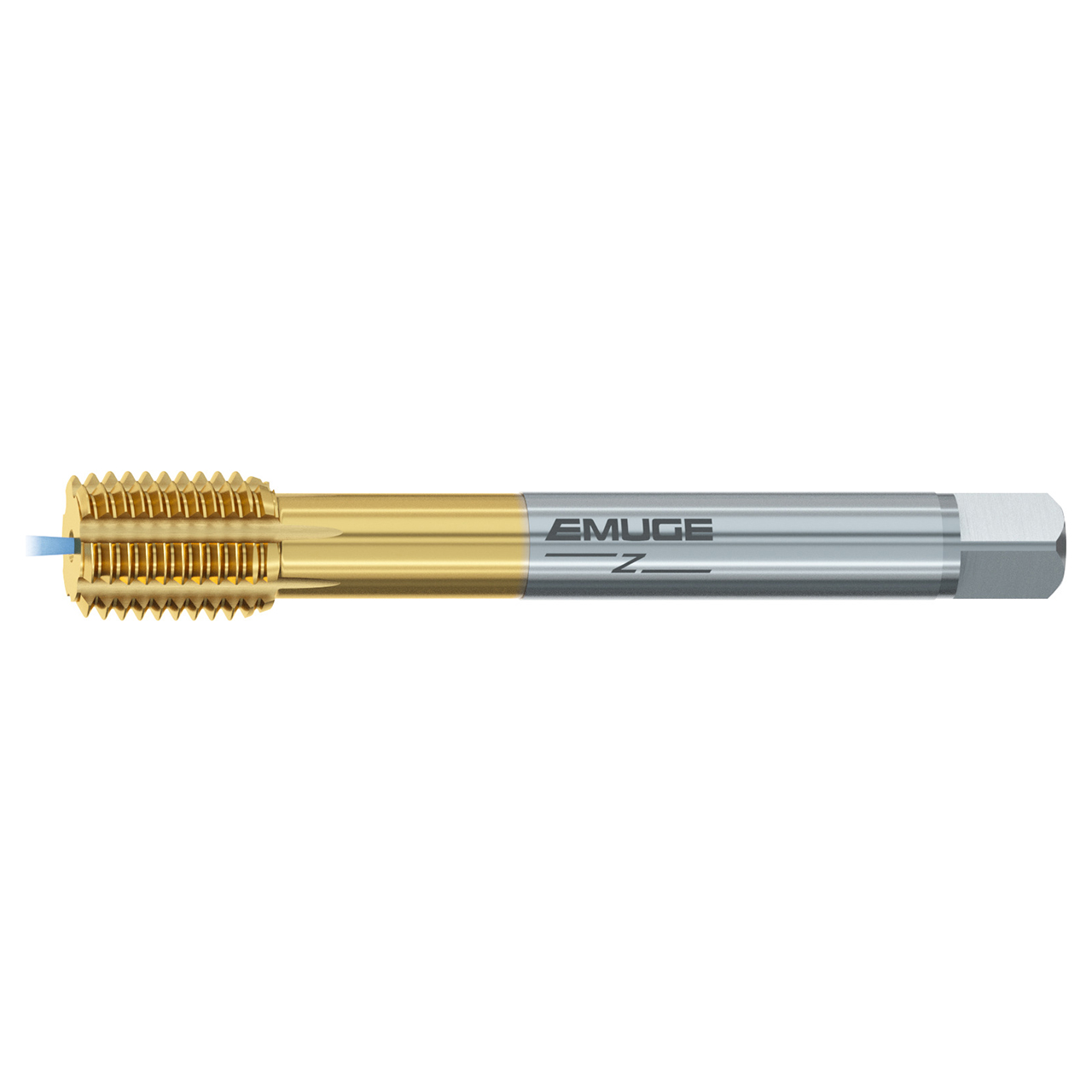

Emuge C523Z700.5013 | UNC 1/2"-13 Size x 9.00mm Shank x 20.00mm Thread Length x 110.00mm OAL TiN-80 Coated HSSE-PM Thread Forming Tap

Emuge C523Z700.5013 | UNC 1/2"-13 Size x 9.00mm Shank x 20.00mm Thread Length x 110.00mm OAL TiN-80 Coated HSSE-PM Thread Forming Tap

SKU: 17985282 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$321.52 $315.09
(You save $6.43)
Shipping: Free Shipping

About This Item

Features:

  • InnoForm Z - HSSE-PM cold forming tap for applications in many workpiece materials
  • Short threaded part and special polygon shape for less torque
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberC523Z700.5013
Cutting Diameter (Decimal Inch)13.000"
Thread Size1/2"-13"
Thread Diameter Size (Inch)1/2"
Thread StandardUNC
Thread per Inch (TPI)13 TPI
Tap Square (mm)7.00mm
Thread Length (mm)20.00mm
Overall Length (mm)110.00mm
Flute Length (mm)25.00mm
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingTiN-80
Tool TypeInnoForm Z
ApplicationForm Taps
Product TypeThread Forming Tap
