Features:

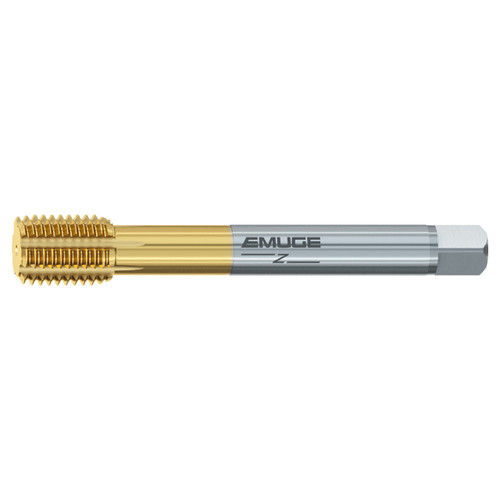

- InnoForm Z - HSSE-PM cold forming tap for applications in many workpiece materials
- Short threaded part and special polygon shape for less torque
- Axial coolant fed to maximize chip evacuation and improve thread quality
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C523Z700.5015 |
| Cutting Diameter (Decimal Inch) | 11.000" |
| Thread Size | 5/8"-11" |
| Thread Diameter Size (Inch) | 5/8" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 11 TPI |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 110.00mm |
| Flute Length (mm) | 27.00mm |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Group Length | DIN Length |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Cutting Edge Material | HSSE-PM |
| Coating | TiN-80 |
| Tool Type | InnoForm Z |
| Application | Form Taps |
| Product Type | Thread Forming Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
5/8-11"
Finish/Coating:
TiN-80
Thread Standard:
UNC
