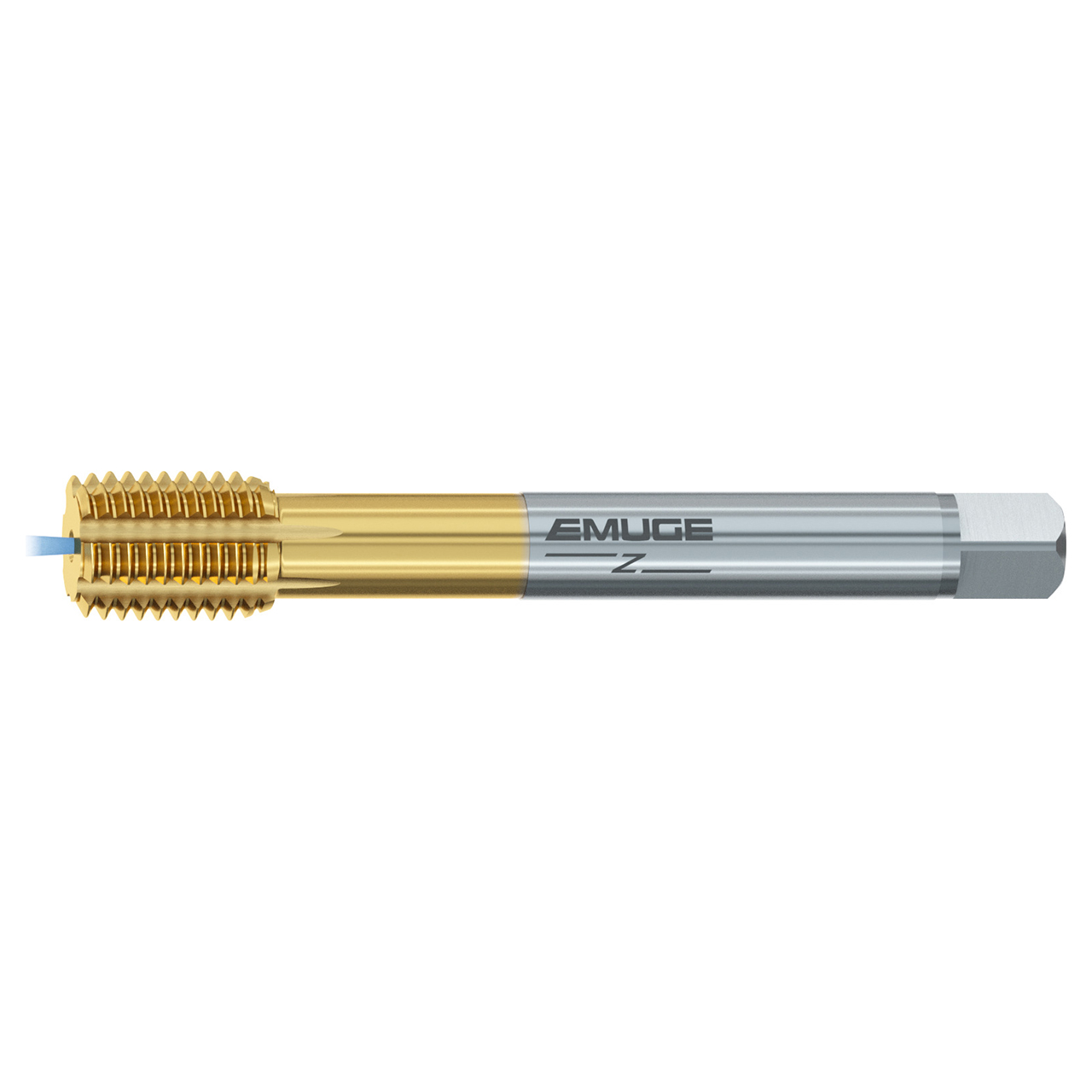

Emuge C523Z700.5016 | UNC 3/4"-10 Size x 14.00mm Shank x 25.00mm Thread Length x 125.00mm OAL TiN-80 Coated HSSE-PM Thread Forming Tap

Emuge C523Z700.5016 | UNC 3/4"-10 Size x 14.00mm Shank x 25.00mm Thread Length x 125.00mm OAL TiN-80 Coated HSSE-PM Thread Forming Tap

SKU: 17985284 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$512.46 $502.21
(You save $10.25)
Shipping: Calculated at Checkout

About This Item

Features:

  • InnoForm Z - HSSE-PM cold forming tap for applications in many workpiece materials
  • Short threaded part and special polygon shape for less torque
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • DIN/DIN standard dimensions for overall length and shank size

Product Specifications
Manufacturer Part NumberC523Z700.5016
Cutting Diameter (Decimal Inch)10.000"
Thread Size3/4"-10"
Thread Diameter Size (Inch)3/4"
Thread StandardUNC
Thread per Inch (TPI)10 TPI
Tap Square (mm)11.00mm
Thread Length (mm)25.00mm
Overall Length (mm)125.00mm
Flute Length (mm)30.00mm
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/DIN
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingTiN-80
Tool TypeInnoForm Z
ApplicationForm Taps
Product TypeThread Forming Tap
