Features:

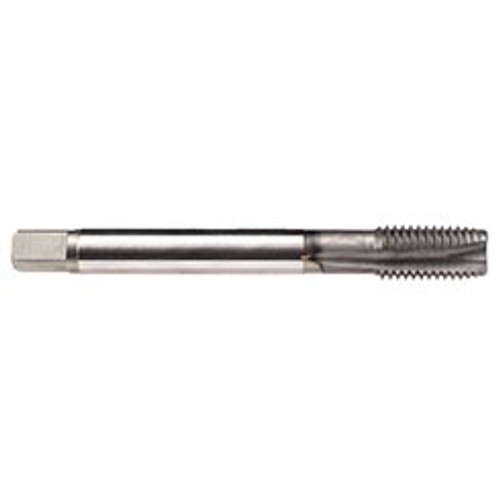

- Rekord B-VA design is typically for through hole applications in stainless steel and steel materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Pitch | 13 |
| Size | 1/2" |
| Thread Limit | 3B |
| Thread Standard | UNC |
| Applicable Material | Alloyed Steel & Stainless Steel |
| Application | Through Hole |
| Coolant Fed | No |
| Coating/Finish | GLT-1 |
| Material | HSSE |
| Type | Rekord B-VA |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.367" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 4.331" |
| Thread Length (mm) | 0.984" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/2"-13
Thread Limit:
3B
Number of Flutes:
3
Thread Standard:
UNC
Chamfer:
4 -5 P
Finish/Coating:
No
Material:
HSSE
Cutting Direction:
Right Hand
