Features:

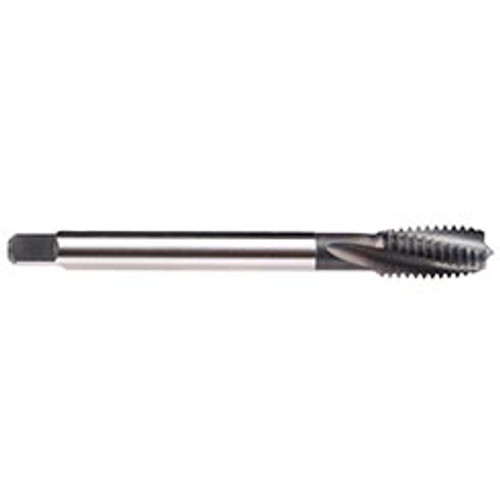

- Rekord C-TI is a left hand spiral tap designed for titanium alloys and high tensile strength materials. Best suited for through hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | D |
| Pitch | 11 |
| Size | 5/8" |
| Thread Limit | 2BX |
| Thread Standard | UNC |
| Applicable Material | Titanium Alloys & High Tensile Materials |
| Application | Through Hole |
| Coolant Fed | No |
| Coating/Finish | NT2 |
| Material | HSSE |
| Type | Rekord C-TI |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 0.480" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 4.331" |
| Thread Length (mm) | 1.063" |
| Flute Direction | Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
5/8"-11
Thread Limit:
2BX
Number of Flutes:
3
Chamfer:
4 -5 P
Material:
HSSE
Finish/Coating:
NT2
Flute Direction:
Left Hand
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
