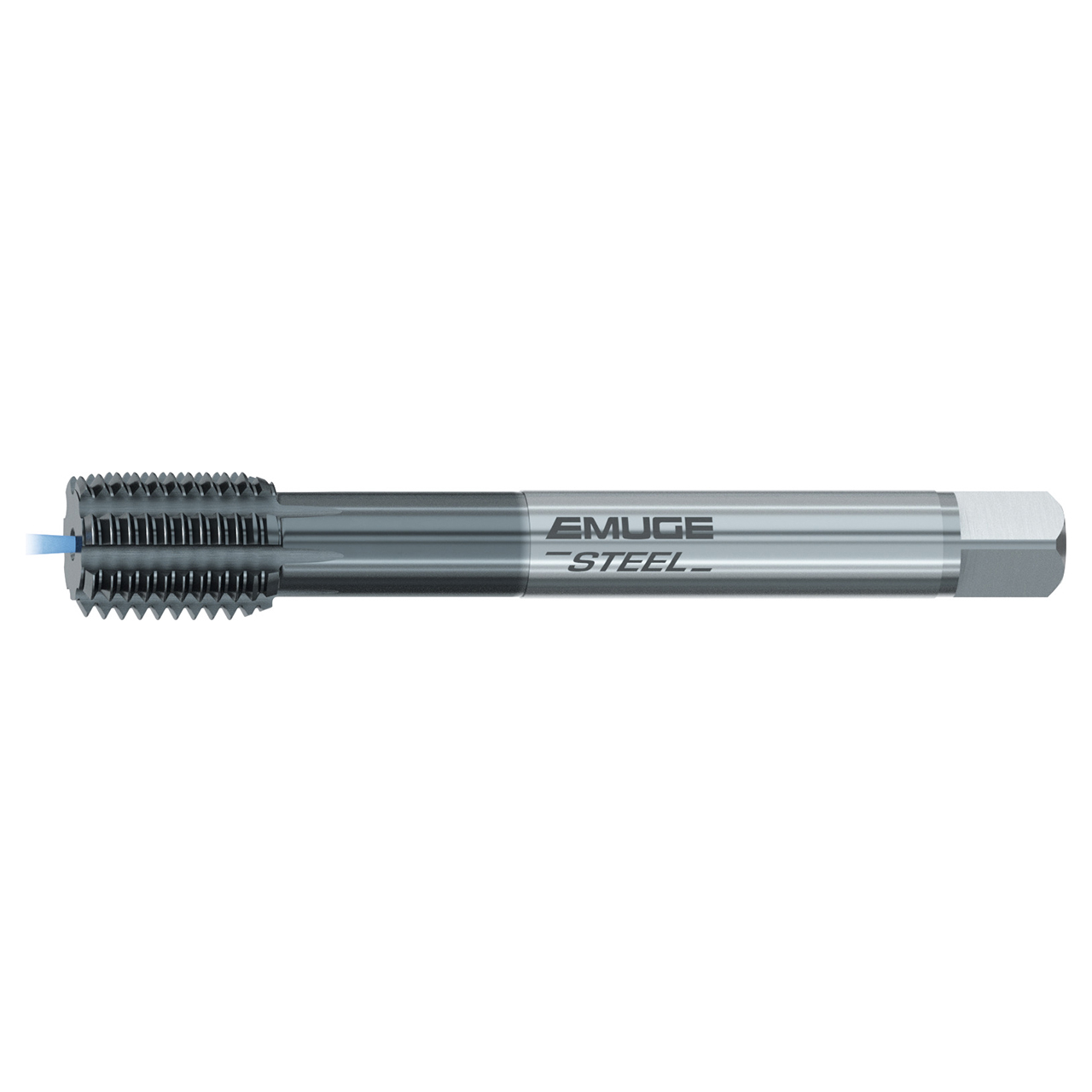

Emuge CU386F00.5050 | 3/4"-16 Thread Size x 0.590" Shank x 4.331" OAL TICN-67 Coated Thread Forming Tap

Emuge CU386F00.5050 | 3/4"-16 Thread Size x 0.590" Shank x 4.331" OAL TICN-67 Coated Thread Forming Tap

SKU: 15039682 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$408.75 $400.58
(You save $8.17)
Shipping: Free Shipping

About This Item

Features:

  • The InnoForm Steel-H roll form tap is designed for high tensile strength materials
  • Short threaded part and special polygon shape for less torque
  • TICN coated for additional wear resistance
  • IKZ - Axial exit coolant holes improve thread quality

Product Specifications
Manufacturer Part NumberCU386F00.5050
Thread Size3/4"-16"
Thread Diameter Size (Inch)3/4"
Thread StandardUNF
Thread per Inch (TPI)16 TPI
Tap Square (Decimal Inch)0.442"
Thread Length (Decimal Inch)0.625"
Overall Length (Decimal Inch)4.331"
Shank Machine Side Connection Diameter (Decimal Inch)0.590"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingTICN-67
Tool TypeEMUGE STEEL
ApplicationForm Taps
Product TypeThread Forming Tap
