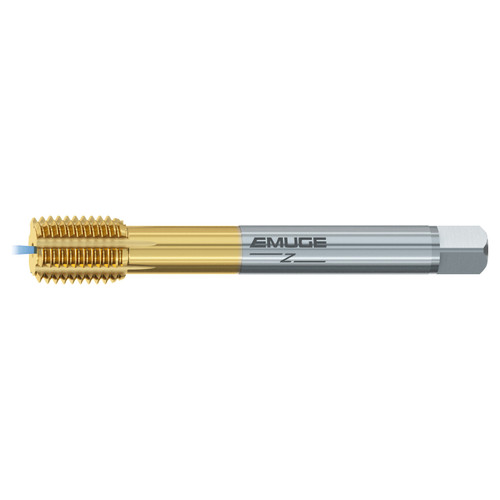

Emuge CU44Z700.5014 | 9/16"-12 Thread Size x 0.429" Shank x 4.331" OAL TIN-80 Coated Thread Forming Tap

Emuge CU44Z700.5014 | 9/16"-12 Thread Size x 0.429" Shank x 4.331" OAL TIN-80 Coated Thread Forming Tap

SKU: 15039774 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$252.91 $247.85
(You save $5.06)
Shipping: Calculated at Checkout

About This Item

Features:

  • The InnoForm Z roll form tap is designed for steel, alloyed steel, aluminum and other materials
  • Designed for use in CNC-controlled machines
  • Axial coolant fed to maximize chip evacuation and improve thread quality
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberCU44Z700.5014
Thread Size9/16"-12"
Thread Diameter Size (Inch)9/16"
Thread StandardUNC
Thread per Inch (TPI)12 TPI
Tap Square (Decimal Inch)0.322"
Thread Length (Decimal Inch)0.833"
Overall Length (Decimal Inch)4.331"
Shank Machine Side Connection Diameter (Decimal Inch)0.429"
Thread Tolerance Class2BX
Tap Chamfer1.5-2 P
Tap Chamfer FormE
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyInternal
Coolant FedAxial
Cutting Edge MaterialHSSE-PM
CoatingTIN-80
Tool TypeInnoForm Z
ApplicationForm Taps
Product TypeThread Forming Tap
