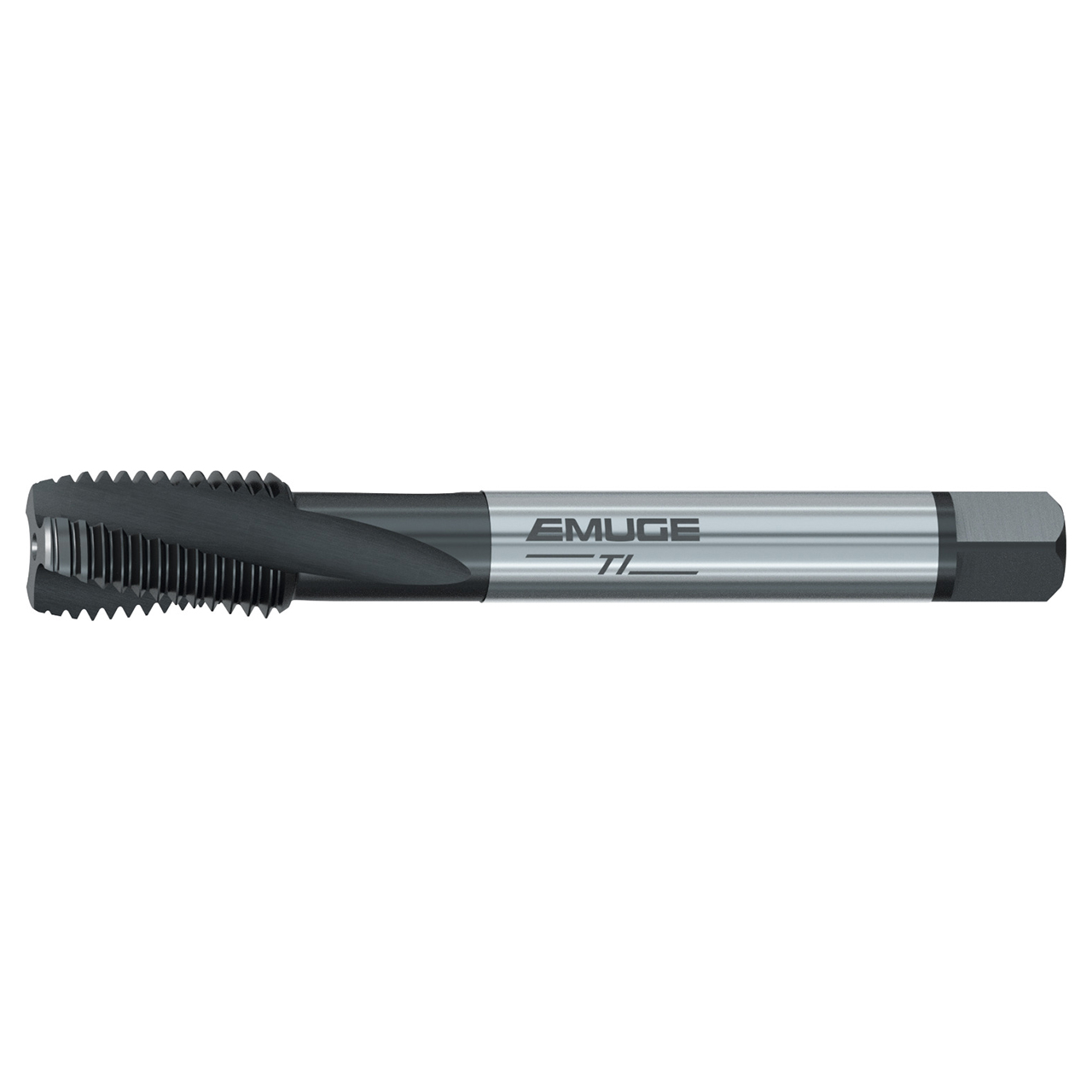

Emuge CU456001.5052 | 1-12" Thread Size x 5.512" OAL 4 Flute NT2 Coated Spiral Flute Tap

$353.92 $346.84
(You save $7.08)
Brand:
Emuge
Number of Flutes:
4
Finish/Coating:
NT2
Flute Direction:
Right Hand
Threads per Inch (TPI):
12
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5120"
Overall Length (mm):
140.00mm
interval quantity:
1
SKU:
15045754
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Emuge CU456001.5052 | 1-12" Thread Size x 5.512" OAL 4 Flute NT2 Coated Spiral Flute Tap

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberCU456001.5052
Thread Size1" -12"
Thread Diameter Size (Inch)1"
Thread StandardUNF
Thread per Inch (TPI)12 TPI
Tap Square (Decimal Inch)0.600"
Thread Length (Decimal Inch)1.181"
Overall Length (Decimal Inch)5.512"
Shank Machine Side Connection Diameter (Decimal Inch)0.800"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute4
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingNT2
Tool TypeRekord D-TI
ApplicationSpiral Flute Taps
Product TypeSpiral Flute Tap
