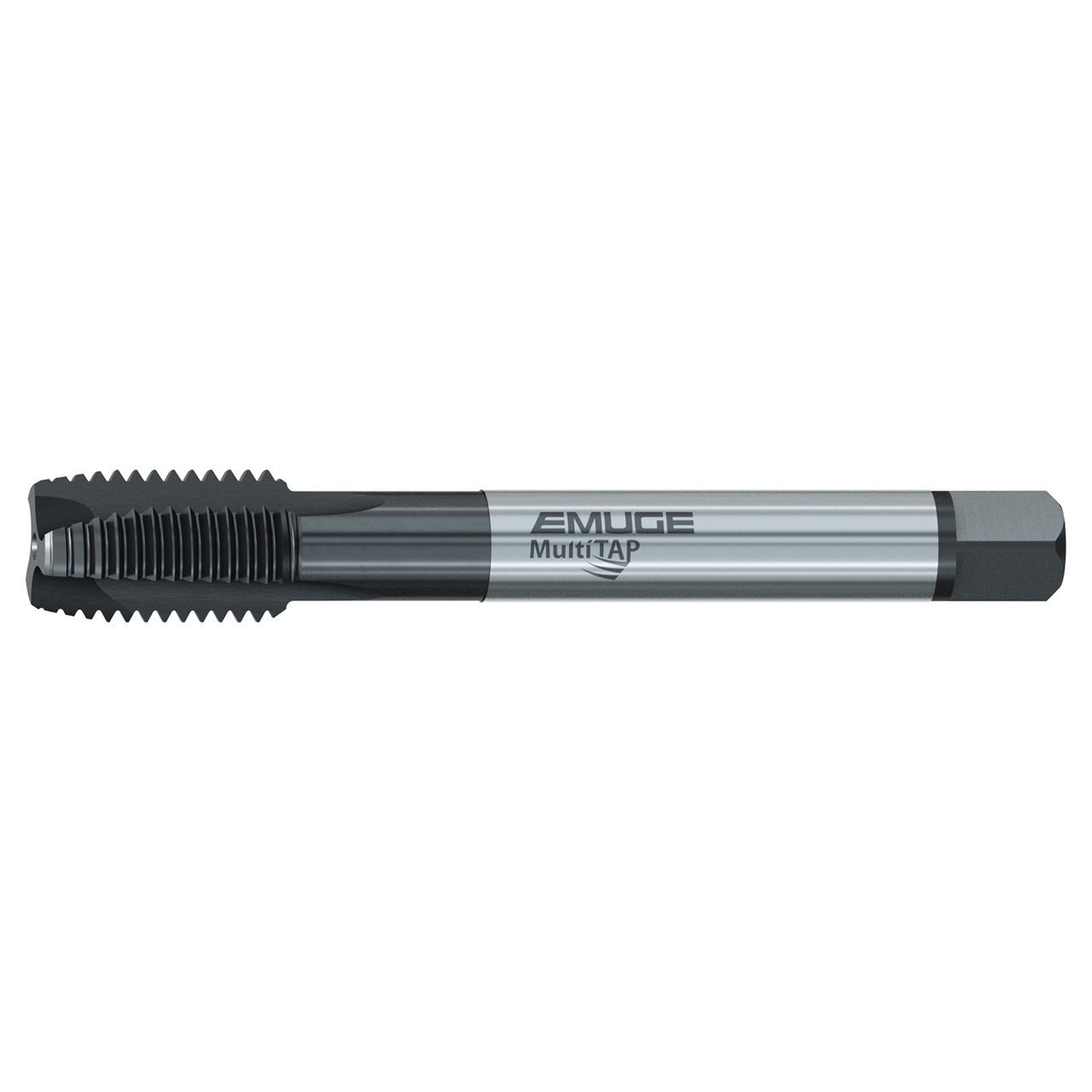

Emuge CU459611.5641 | 3/8"-24" Thread Size x 3.937" OAL 3 Flute TICN Coated Thread Forming STI Tap

$93.49
Brand:
Emuge
Thread Size:
3/8-24"
Finish/Coating:
TICN
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
99.99mm
Thread Standard:
STI-UNF
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3230"
Shank Diameter (mm):
8.08mm
interval quantity:
1
SKU:
17985301
Weight:
1.23 LBS
Shipping:
Free Shipping

Features:

  • Rekord D-TI tap is a slow spiral design for blind holes
  • Best suited for titanium and high tensile strength materials
  • Spiral point creates tight curled chips that are pushed ahead of the tap
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberCU459611.5641
Thread Size3/8"-24"
Thread Diameter Size (Inch)3/8"
Thread StandardSTI-UNF
Thread per Inch (TPI)24 TPI
Tap Square (Decimal Inch)0.242"
Thread Length (Decimal Inch)0.709"
Overall Length (Decimal Inch)3.937"
Shank Machine Side Connection Diameter (Decimal Inch)0.323"
Thread Tolerance Class3BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionRight Hand
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute3
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRekord D-TI
ApplicationSTI Taps
Product TypeThread Forming STI Tap
