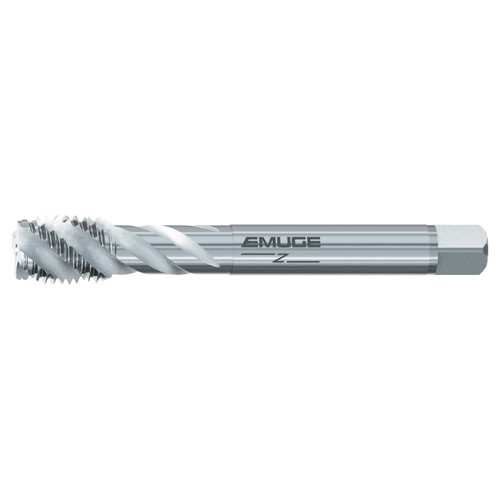

Features:
- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- The fast spiral flute provides good chip removal from blind holes
- Bright, uncoated surface finish
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU503560.5013 |
| Thread Size | 1/2"-13" |
| Thread Diameter Size (Inch) | 1/2" |
| Thread Standard | UNC |
| Thread per Inch (TPI) | 13 TPI |
| Tap Square (Decimal Inch) | 0.275" |
| Thread Length (Decimal Inch) | 0.984" |
| Overall Length (Decimal Inch) | 4.331" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.367" |
| Thread Tolerance Class | 3B |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Left Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 45 Degree |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Enorm Z |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
1/2-13"
Number of Flutes:
4
Finish/Coating:
Bright
Flute Direction:
Left Hand
Threads per Inch (TPI):
13
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
