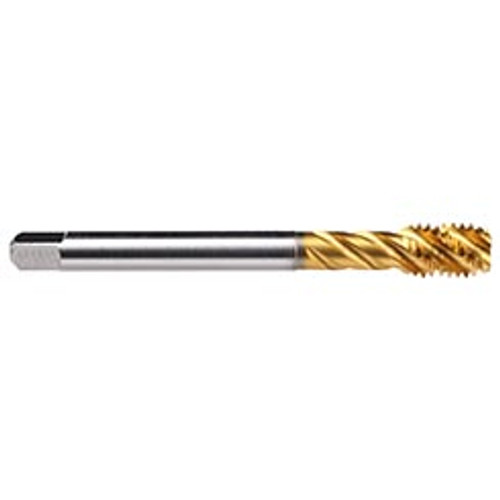

Emuge CU513710.5641 | STI 3/8-24 UNC - Tap - EnorMZ/E -TIN - 3B

$78.84
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
3/8"-24
Thread Limit:
3B
Number of Flutes:
4
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TIN
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Thread Standard:
STI-UNF
Thread Length (Inch):
27/64"
Thread Length (Decimal Inch):
0.4170"
Thread Length (mm):
10.6mm
Shank Diameter (Inch):
21/64"
Shank Diameter (Decimal Inch):
0.3230"
Shank Diameter (mm):
8.21mm
SKU:
15039993
Weight:
0.08 LBS
Shipping:
Free Shipping
CU513710.5641-B

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
3/8"-24
Thread Limit:
3B
Number of Flutes:
4
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TIN
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Thread Standard:
STI-UNF
Thread Length (Inch):
27/64"
Thread Length (Decimal Inch):
0.4170"
Thread Length (mm):
10.6mm
Shank Diameter (Inch):
21/64"
Shank Diameter (Decimal Inch):
0.3230"
Shank Diameter (mm):
8.21mm
