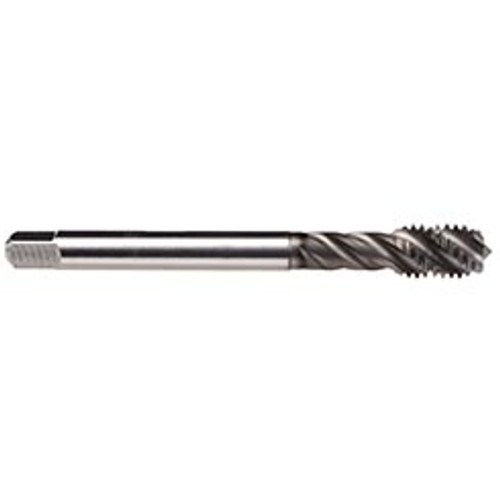

Emuge CU51C410.5620 | STI 7/16-14 -Tap -EnorMZ/E -GLT-1

$134.10
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
7/16"-14
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
4
Finish/Coating:
GLT-1
Material:
HSSE
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNC
Thread Length (Inch):
23/32"
Thread Length (Decimal Inch):
0.7140"
Thread Length (mm):
18.14mm
Shank Diameter (Inch):
27/64"
Shank Diameter (Decimal Inch):
0.4290"
Shank Diameter (mm):
10.9mm
SKU:
15040033
Weight:
0.15 LBS
Shipping:
Free Shipping
CU51C410.5620-B

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality
