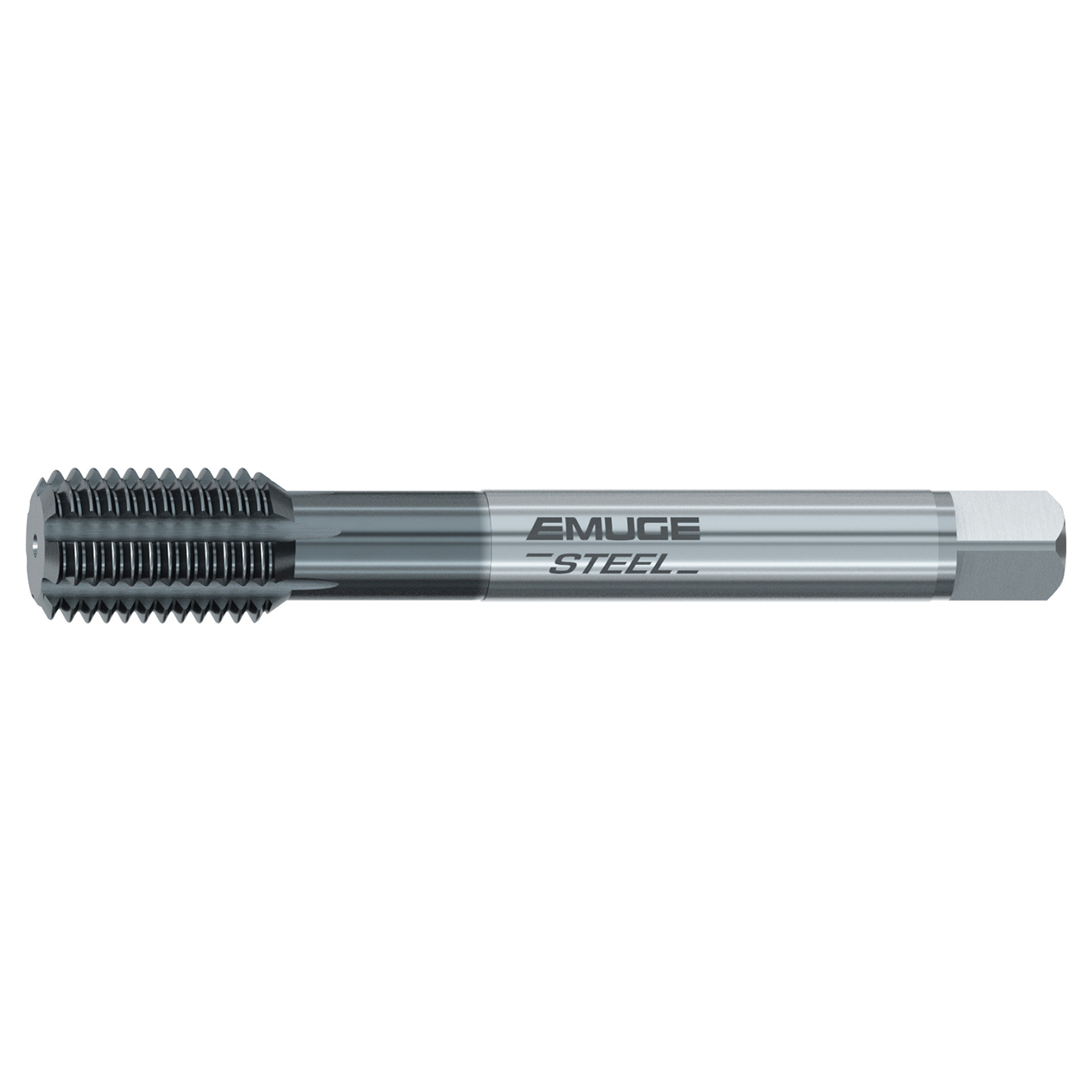

Emuge CU929000.5642 | 7/16"-20 Thread Size x 3.937" OAL Flute TICN Coated Thread Forming STI Tap

Emuge CU929000.5642 | 7/16"-20 Thread Size x 3.937" OAL Flute TICN Coated Thread Forming STI Tap

SKU: 15040099 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$159.12 $155.94
(You save $3.18)
Shipping: Calculated at Checkout

About This Item

Features:

  • The Druck Steel roll form tap for the chipless production of internal threads, blind and though hole
  • Steel Alloys & Long Chipping Materials
  • TICN coated for additional wear resistance
  • DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks

Product Specifications
Manufacturer Part NumberCU929000.5642
Thread Size7/16"-20"
Thread Diameter Size (Inch)7/16"
Thread StandardSTI-UNF
Thread per Inch (TPI)20 TPI
Tap Square (Decimal Inch)0.275"
Thread Length (Decimal Inch)0.866"
Overall Length (Decimal Inch)3.937"
Shank Machine Side Connection Diameter (Decimal Inch)0.367"
Thread Tolerance Class2BX
Tap Chamfer2-3 P
Tap Chamfer FormC
Dimensional StandardsDIN/ANSI
Shank Toleranceh9
Flute DirectionStraight
Group LengthDIN Length
Coolant Supply PropertyExternal
Coolant FedNo
Cutting Edge MaterialHSSE
CoatingTICN
Tool TypeRoll Form - Druck
ApplicationSTI Taps
Product TypeThread Forming STI Tap
