Features:

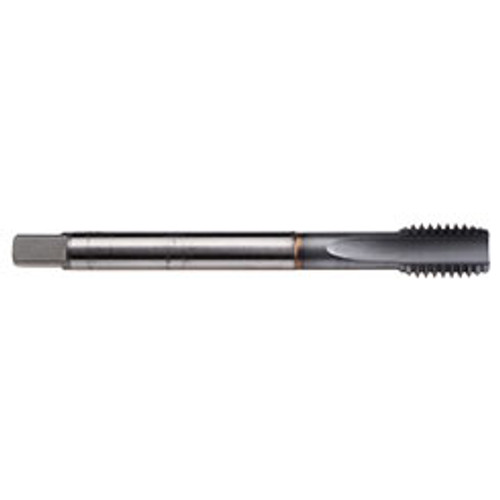

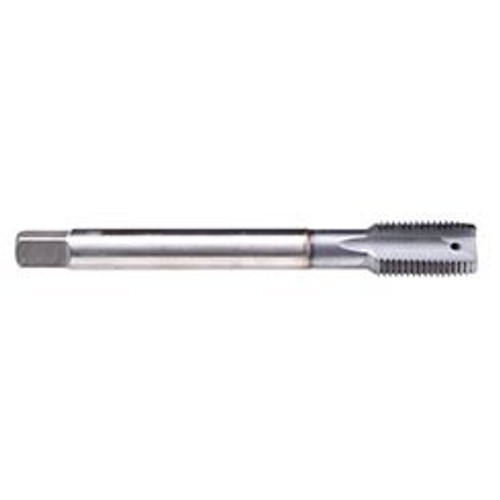

- Rekord A-Z is a straight flute for short chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 20 |
| Size | 7/16" |
| Thread Limit | 2BX |
| Thread Standard | UNF |
| Applicable Material | Short Chipping Cast Materials |
| Application | Through and Blind Hole |
| Coolant Fed | Axial |
| Coating/Finish | TICN |
| Material | HSSE |
| Type | Rekord A-Z |
| Length Group | DIN Length |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 0.323" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 3.937" |
| Thread Length (mm) | 0.866" |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
7/16"-20
Thread Limit:
2BX
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Number of Flutes:
4
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
TICN
Thread Standard:
UNF
