Features:

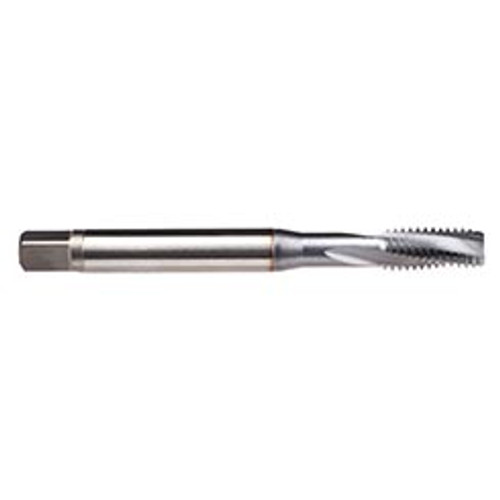

- Rekord D-VA tap is a slow spiral design for blind holes, especially automatic lathes and multi-spindle machines. Best suited for stainless steel, steel alloys & cast aluminum
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 8 |
| Size | 1 |
| Thread Limit | 2B |
| Thread Standard | UNC |
| Applicable Material | Stainless Steel & Steel Alloys |
| Application | Blind Hole |
| Coolant Fed | Axial |
| Coating/Finish | TICN |
| Material | HSSE |
| Type | Rekord D-VA |
| Length Group | DIN Length |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 0.800" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 6.299" |
| Thread Length (mm) | 1.417" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1-8
Thread Limit:
2B
Number of Flutes:
3
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
TICN
Flute Direction:
Right Hand
Overall Length (Inch):
6-19/64"
Overall Length (Decimal Inch):
6.2990"
Overall Length (mm):
160mm
