Features:

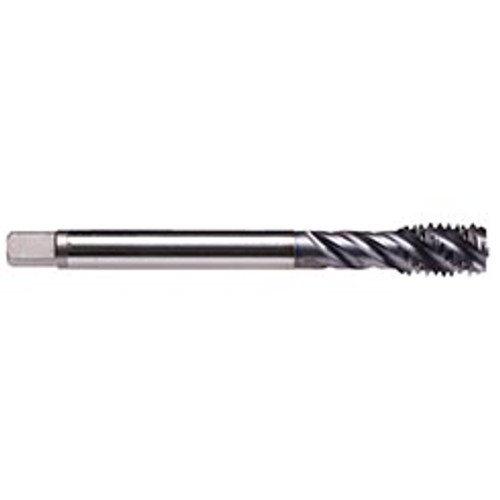

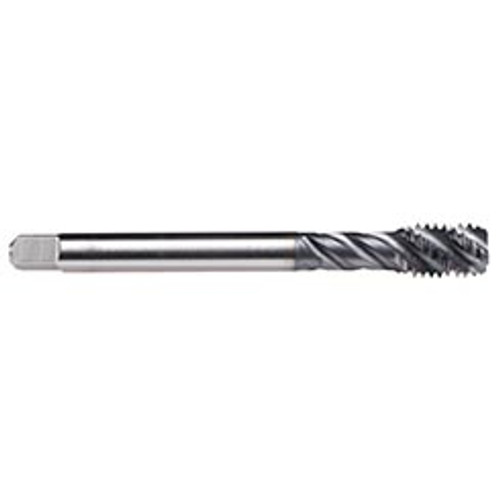

- The Enorm Z/E design is typically for blind hole threads in long chipping materials The fast spiral flute (45 Degree) provides good chip removal from blind holes
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 1.5 -2 P |
| Chamfer Form | E |
| Pitch | 9 |
| Size | 7/8" |
| Thread Limit | 2B |
| Thread Standard | UNC |
| Applicable Material | Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | Axial |
| Coating/Finish | TICN |
| Material | HSSE |
| Type | Enorm Z/E |
| Length Group | DIN Length |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 0.697" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 5.512" |
| Thread Length (mm) | 1.260" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
7/8"-9
Thread Limit:
2B
Number of Flutes:
4
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TICN
Flute Direction:
Right Hand
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5120"
Overall Length (mm):
140.01mm
