Features:

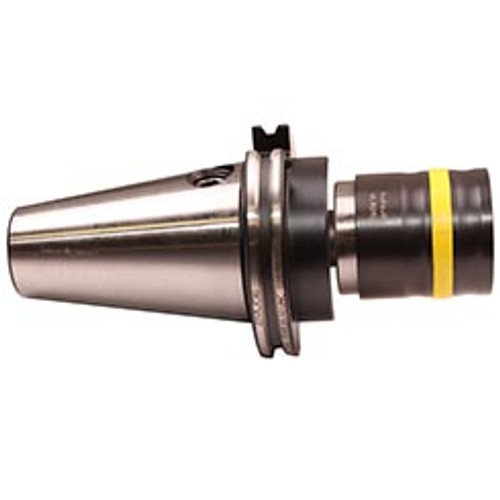

- KSN tension compression tool holder with front release
- Quick-Change tap holder for fast tap replacement
Product Specifications
| Size | 7/8"-1-3/4" (M22-M48) Taps |
| Application | Tapping Tool Holder |
| Type | Tension / Compression |
| Shank Diameter (mm) | BT 40 |
| Coolant Fed | No |
| Shank Tolerance | JIS B 6339 (MAS 403 BT) |
| Shank Style | BT |
| Projection Length (mm) | 167.5 mm |
| Nose Diameter (mm) | 96 mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Projection (Inch):
6-19/32"
Projection (mm):
167.5mm
Projection (Decimal Inch):
6.5900"
Nose Diameter (Decimal Inch):
3.7800"
interval quantity:
1
